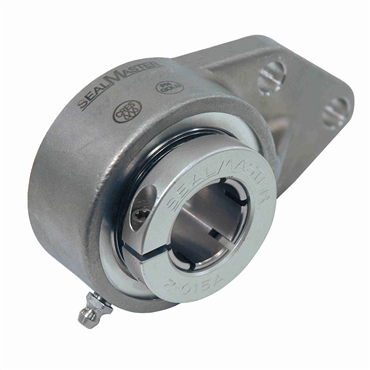

High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
Solid construction with machined base was designed for minimal gaps and no fillers
Skwezloc® Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity & ball path instead of around a lubrication groove, prevents outer ring rotation.
Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
USDA H1 complaint food grade grease
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
options
Corrosion Resistant
Bearing Insert Coating
Phosphorus Nickel
End Cap
Yes
Bolt Center-to-Center Length
2 in
Bolt Center-to-Center Length (in)
2
Measure Units
Inch
Inner Race Heat Treat Method
Zone-Hardened
Locking Type
Concentric
Foot Height
0.5 in
Overall Length
6.125 in
Lubrication
Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Housing Base
Solid
Bore Shape
Straight
Bearing Type
Ball Bearing
Overall Length (in)
6.125
Insert No.
PN-20T
Foot Height (in)
0.5
Insert Material
52100 Bearing Steel, Phosphorus Nickel Coated
Housing Width (in)
3.75
Overall Height to End Cap
2.781 in
Retainer Type
Land Riding
Housing Width
3.75 in
Housing Material
Stainless Steel
Relubricatable
Yes
Duty Series
Standard
Replaceable Insert
Yes
Maximum Operating Temperature
220
Housing Construction
One Piece
Pilot Configuration
No Pilot
Operating Temperature [Max]
220 °F
Centerline to Front Face (in)
1
Expansion
No
Centerline to Front Face
1 in
Angle of Misalignment
±2°
Housing Color
Silver
Speed [Max]
2000 rpm
Flange Type
3-Bolt Flange Bracket
Overall Height to Inner Ring (in)
1.875
Outer Ring Land Profile
Standard
Seal Type
Triple Lip Contact
Bore Size
1.25 in
Overall Height to Inner Ring
1.875 in
Misalignment Type
Static Only
Collar O.D.
2.438 in
Collar OD (in)
2.438
Bore Size - Inch
1.25
Internal Clearance
Standard
Inch/Metric
Inch
Weight
3.1 LB
EAN or UPC
662461348130
