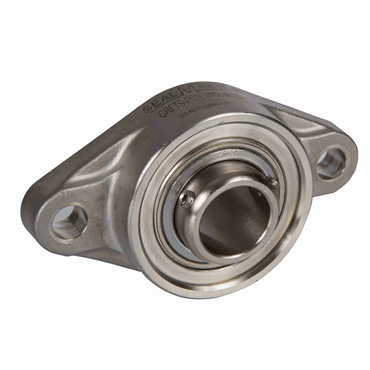

High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
USDA H1 complaint food grade grease
Solid construction with machined base was designed for minimal gaps and no fillers
Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity & ball path instead of around a lubrication groove, prevents outer ring rotation.
Inner Race Heat Treat Method
Zone-Hardened
Outer Ring Land Profile
Tapered
Misalignment Type
Static Only
Inch/Metric
Inch
Bore Shape
Straight
Retainer Type
Land Riding
Relubricatable
No
Bolt Size
0.375 in
Speed [Max]
3100 rpm
Duty Series
Standard
Angle of Misalignment
±2°
End Cap
Yes
Inner Ring O.D.
1.188 in
Overall Width
2.375 in
Pilot Configuration
No Pilot
Bolt Center-to-Center Length
3 in
Flange Type
2-Bolt Flange
Bearing Insert Coating
Phosphorus Nickel
Locking Type
Set Screws
Radial Dynamic Load Capacity
2611 lb
Lubrication
Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Replaceable Insert
Yes
Expansion
No
Overall Length
3.875 in
Bore Size
0.625 in
Overall Height to Inner Ring
1.281 in
Internal Clearance
Standard
Foot Height
0.438 in
Overall Height
1.281 in
Insert Material
52100 Bearing Steel, Phosphorus Nickel Coated
Housing Base
Solid
Inner Race Length
1.188 in
Housing Width
2.375 in
Centerline to Front Face
0.719 in
Operating Temperature [Max]
220 °F
Bearing Type
Ball Bearing
Seal Type
Triple Lip Contact
Housing Construction
One Piece
Housing Color
Silver
Housing Material
Stainless Steel
Weight
1.2 LB
EAN or UPC
662461343395
