Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
USDA H1 complaint food grade grease
High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
Solid construction with machined base was designed for minimal gaps and no fillers
Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity & ball path instead of around a lubrication groove, prevents outer ring rotation.
options
Corrosion Resistant - Reduced Maintenance - Lubed for Life
Replaceable Insert
Yes
Housing Construction
One Piece
Bolt Size
0.5 in
Special Features
Reduced Maintenance
Housing Material
Stainless Steel
Centerline to Front Face (in)
1.188
Inner Ring O.D.
2.063 in
Expansion
No
Inner Ring OD (in)
2.063
Insert No.
PN-24
Maximum Operating Temperature
220
Bore Size - Inch
1.5
Housing Length
6 3/4 in
Pilot Configuration
No Pilot
Inner Race Heat Treat Method
Zone-Hardened
Outer Ring Land Profile
Tapered
Foot Height (in)
0.563
Bore Size
1.5 in
Locking Device
Setscrew Locking Collar
Series
CRFTS
Overall Length (in)
6.75
Bolt Circle Dia.
5 21/32 in
Bolt Center-to-Center Length (in)
5.6560
Seal Type
Triple Lip Contact
Bearing Type
Ball Bearing
Radial Dynamic Load Capacity
7340 lb
Bore Shape
Straight
Housing Color
Silver
End Cap
Yes
Bolt Hole Spacing
5 21/32 in
Lubrication
Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease

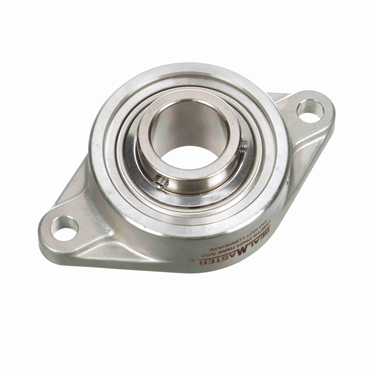

Flange Type
2-Bolt Flange
Bearing Insert Coating
Phosphorus Nickel
Overall Height to Inner Ring (in)
2.016
Angle of Misalignment
±2°
Speed [Max]
1750 rpm
Overall Length
6.75 in
Bearing Design
Non-Expansion
Internal Clearance
Standard
Inch/Metric
Inch
Shaft Dia.
1.5 in
Bolt Size (in)
0.5
Certifications
IP69K
Centerline to Front Face
1.188 in
Mounted Unit Duty
Standard Duty
Measure Units
Inch
Platform
PN Gold
Insert Material
52100 Bearing Steel, Phosphorus Nickel Coated
Backside Shield/Seal
Optional backside shield available order separate
Operating Temperature [Max]
220 °F
Duty Series
Standard
Relubricatable
No
Bolt Center-to-Center Length
5.656 in
Overall Height to Inner Ring
2.016 in
Foot Height
0.563 in
End Type
Open End
Retainer Type
Land Riding
Misalignment Type
Static Only
Locking Type
Set Screws
Housing Base
Solid
Weight
4.7 LB
EAN or UPC
662461337813
