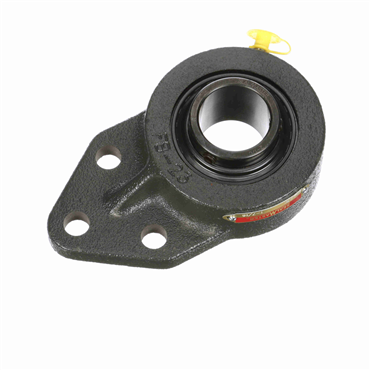

Narrow housing with three bolt holes on one side of the housing.
applications
Tight spaces
Tail pulleys
features
Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Single lip contact seal
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation
Expansion
No
Misalignment Type
Static Only
Centerline to Front Face (in)
1
Operating Temperature [Max]
220 °F
Housing Width (in)
3.75
Foot Height (in)
0.5
Bolt Center-to-Center Length
2 in
Housing Material
Cast Iron
Internal Clearance
Standard
Centerline to Front Face
1 in
Insert No.
2-17C
Seal Type
Single Lip Contact
Overall Length (in)
6.125
Replaceable Insert
Yes
Inner Ring OD (in)
1.859
Angle of Misalignment
±2°
Inner Race Heat Treat Method
Zone-Hardened
Inner Ring O.D.
1.859 in
Overall Height to Inner Ring (in)
1.875
End Cap
No
Speed [Max]
4650 rpm
Bearing Type
Ball Bearing
Bore Shape
Straight
Flange Type
3-Bolt Flange Bracket
Insert Material
52100 Bearing Steel, Black Oxided
Inch/Metric
Inch
Housing Base
Solid
Overall Height to Inner Ring
1.875 in
Duty Series
Standard
Locking Type
Set Screws
Foot Height
0.5 in
Housing Construction
One Piece
Bearing Insert Coating
Black Oxide
Retainer Type
Land Riding
Relubricatable
Yes
Bore Size
1.438 in
Bore Size - Inch
1.438
Bolt Center-to-Center Length (in)
2
Maximum Operating Temperature
220
Measure Units
Inch
Outer Ring Land Profile
Standard
Housing Color
Gray
Overall Length
6.125 in
Lubrication
Lithium Complex NLGI 2 Grease
Housing Width
3.75 in
Pilot Configuration
No Pilot
Weight
3.65 LB
EAN or UPC
662461026083
