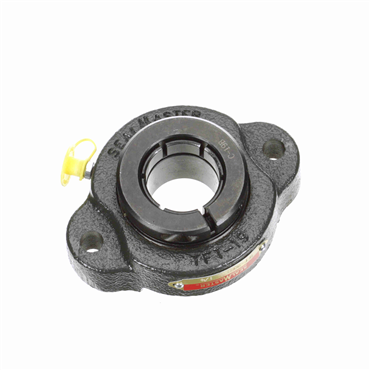

Powder coated epoxy cast iron housing with extended inner ring bearings
Skwezloc® concentric locking for near perfect concentricity
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation
Bolt Center-to-Center Length (in)
3.5630
Internal Clearance
Standard
Housing Base
Solid
Insert No.
1-14T
Speed [Max]
7600 rpm
Bolt Size
0.375 in
Series
TFT-T
Operating Temperature [Max]
220 °F
Overall Height to Inner Ring (in)
1.625
Overall Height
3.25 in
Housing Color
Gray
Replaceable Insert
Yes
Collar OD (in)
2.1875
Locking Type
Concentric
Seal Type
Felt Labyrinth
Maximum Operating Temperature
220
End Type
Open End
Mounted Unit Duty
Standard Duty
Bolt Center-to-Center Length
3.563 in
Overall Length (in)
4.438
Bearing Design
Non-Expansion
Collar O.D.
2.188 in
Outer Ring Land Profile
Standard
Housing Construction
One Piece
Insert Material
52100 Bearing Steel, Black Oxided
Inner Race Heat Treat Method
Zone-Hardened
Overall Length
4.438 in
Bolt Hole Spacing
3 9/16 in
Shaft Dia.
1.25 in
Bore Size
1.25 in
Inch/Metric
Inch
Pilot Configuration
No Pilot
Flange Type
2-Bolt Flange
Bearing Type
Ball Bearing
Retainer Type
Land Riding
Misalignment Type
Static Only
Housing Length
4 7/16 in
Lubrication
Lithium Complex NLGI 2 Grease
Expansion
No
Bearing Insert Coating
Black Oxide
Angle of Misalignment
±2°
Bore Shape
Straight
Measure Units
Inch
Bolt Circle Dia.
3 9/16 in
End Cap
No
Overall Height to Inner Ring
1.625 in
Duty Series
Standard
Overall Width
1.625 in
Bolt Size (in)
0.375
Locking Device
Skwezloc® Concentric Collar
Platform
Gold Line Ball Bearing
Housing Width
0.813 in
Relubricatable
Yes
Housing Material
Cast Iron
Bore Size - Inch
1.25
Weight
2.3 LB
EAN or UPC
662461268056
