NATV17-PP-A

NATV Series Yoke Type Track Roller

Item #101989772

NATV Series Yoke Type Track Roller With Axial Guidance With Inner Ring, 17 mm ID x 40 mm Crowned OD, 20 mm Roller Width, Full Compliment Needle Rollers, Contact Seals, Steel, With Inner Ring

Auto Replenish

each One-time purchase

Alternate Products

Smith Bearing MYRV-17-S

MYRV-S Series Sealed Yoke Roller

Item #104447081

each

Compare

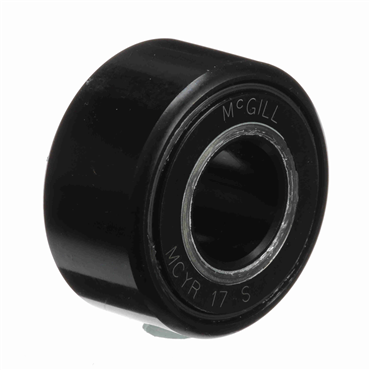

McGill MCYR 17 S

CAMROL® Crowned Yoke Mount Sealed Cam Follower

Item #101088410

each

Compare

Product Details

NATV Series Yoke Type Track Roller With Axial Guidance With Inner Ring, 17 mm ID x 40 mm Crowned OD, 20 mm Roller Width, Full Compliment Needle Rollers, Contact Seals, Steel, With Inner Ring

Specifications

Limiting Speed	2900 rpm
Overall Width	21 mm
I.D.	17 mm
Roller Type	Crowned
Static Capacity	39500 lbf
Roller Width	20 mm
Inside Diameter Tolerance [Max]	17 mm
Roller Dia.	40 mm
Inner Ring	With Inner Ring
Inch/Metric	Metric
Enclosure	Contact Seals
Overall Width Tolerance [Min]	20.88 mm
Dynamic Capacity	21000 lbf
Overall Width Tolerance [Max]	21 mm
Series	NATV
Inside Diameter Tolerance [Min]	16.992 mm
Bearing Type	Full Compliment Needle Rollers
Material	Steel
Weight	0.388 LB
EAN or UPC	4012802418446
