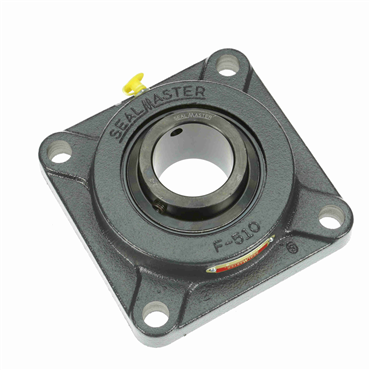

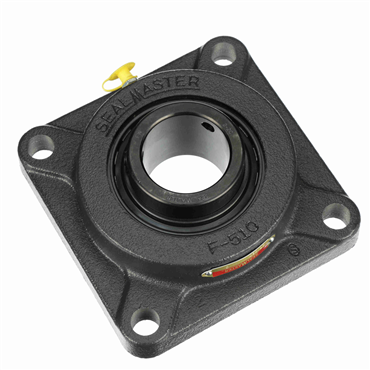

- YCJM Medium-Duty Series 4-Bolt Flange Unit
- 2 in Shaft
- Non-Expansion
- Ball Bearing
- Cast Iron Housing
description
- The YCJM medium-duty, four-bolt, flanged cartridges feature Fafnir's GYM-KRRB bearing inserts. These units are ideal for conveyor, fan and blower, sawmill, and feed and grain handling applications. The durable, cast iron housings are powder paint coated, and maintain an excellent finish while resisting corrosion, chemical and weather exposure. Fafnir's industrial-duty flanged cartridges incorporate premium features designed to extend bearing life and will replace competitive designs.
applications
- Agriculture
- Fans and blowers
- Food processing
- Conveyors
| Duty | Medium-Duty |
| Bolt Circle Dia. | N/A |
| Bolt Size | 5/8 in |
| Locking Device | Setscrew Locking Collar |
| End Type | Open End |
| Shaft Dia. | 2 in |
| Length Through Bore | 2.1875 in |
| Housing Construction | One Piece |
| Style | 4-Bolt Flange |
| Bolt Hole Spacing | 5 1/8 in |
| Seal Type | Contact Seals |
| Housing Height | 6 3/8 in |
| Series | YCJM |
| Housing Length | 6 3/8 in |
| Bearing Insert | GYM1200KRRB |
| Overall Width | 2 17/32 in |
| Mounted Unit Duty | Medium Duty |
| Flange Type | 4-Bolt Flange |
| Lubrication | Relubricatable |
| Housing Material | Cast Iron |
| Flange Thickness | 0.65625 in |
| Housing Width | 1 27/32 in |
| Inch/Metric | Inch |
| Bearing Type | Ball Bearing |
| Bearing Design | Non-Expansion |
| Weight | 7.418 LB |
| EAN or UPC | 87796196803 |
