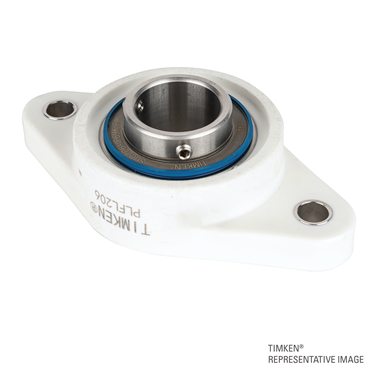

Timken hygienic bearings rated for IP69K are specifically engineered to perform in food and beverage applications where high-pressure washdowns, high humidity and excessive temperature differences exist. Timken achieves IP69K rating without a sealed end-cover. To meet the IP69K rating, our bearings did not allow any water or dust past the seal during the aggressive tests. With Timken, lubrication stays inside the bearing through food grade grease or solid lube options. With these solutions, there’s no need to re-grease, resulting in minimal maintenance to the bearing.
The ball inserts (rings, balls, cage) are fully stainless making them fully metal detectable and corrosion resistant. Our IP69K insert is available in combination with four different housing materials including standard cast stainless, white thermoplastic, hygienic stainless and hygienic blue thermoset housing material. The product line is available with set screw locking and offers thousands of housing combinations including custom options designed to fit any food and beverage application need. Our products fit shaft sizes from 20mm to 50mm and 3/4 in. to 2 in..
features
Achieves IP69K rating without a sealed end-cover
Optically detectable blue seal
Blue seal and flinger material are FDA/EC compliant for direct food contact
Insert bearings (rings, balls, cage) are entirely stainless steel making them fully metal detectable
Lubed for life, no need to re-grease, resulting in minimal maintenance
Numerous hygienic housing types and sizes are available
Lubricant
Food Grade Grease
Mounting Type
2 Bolt Flange
O.D. Type
Spherical
Overall Height
1 3/4 in, 44.4 mm
Seal Type
Contact Seal with Flingers
Mounting Method
Set Screw Mount
Inner Ring Width Type
Wide Inner Ring (Both Sides Extended)
Duty Type
Standard
Bearing Material
Stainless Steel
Locking Type
Set Screw
Pilot Configuration
No Pilot
Ring Type
One Piece Inner and Outer
Dynamic Load Rating
21.8 kN
Cage Material
Stainless Steel
Bolt Size
7/16 in, M12
Outer Ring Width
0.787 in, 20 mm
Mounted Unit Duty
Standard Duty
Adapter Sleeve
No
Bolt Center to Center [Nom]
5 1/8 in, 130 mm
Self Aligning
No
Rolling Element
Ball
Material Insert Bearing
Stainless Steel
Expansion Type
Non-Expansion
Housing Configuration
Solid
Length Through Bore
1.69 in, 42.9 mm
Cage Type
Riveted
Overall Length
6 15/32 in, 164 mm
Inner Ring Width
1.69 in, 42.9 mm
I.D.
1.38 in, 34.93 mm
Overall Width
3 17/32 in, 90 mm
Finish
Uncoated
Ball Material
Stainless Steel
Internal Clearance
C3
O.D.
2.83 in, 72 mm
Bearing Type
Ball Bearing
Housing Material
Polymer
Bolt Center
5.13 in, 130 mm
Component (I/R; O/R assembly)
Assembly
Precision Level
ABEC 1
Relubrication Feature
Grease Zerk
End Type
Open End
Raceway Style
1 Rib Inner Ring and Outer Ring
No. of Rows
Single
Relubricatable
Yes
Seal Material
Nitrile
Bore Type
Round
Closure Type
2 Seals
Bolt Circle Diameter
33/64 in, 13 mm
Static Load Rating
12.3 kN
Fillet Radius Cone
0.043 in, 1.1 mm
Weight
0.375 LB
EAN or UPC
13992474490
