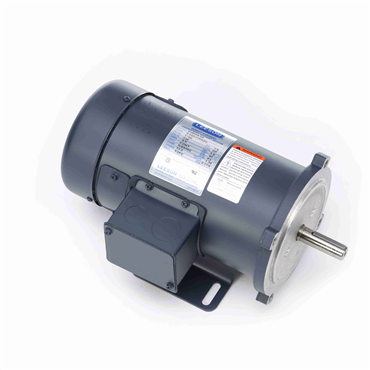

1/2 hp 56C Frame 1750 rpm DC Motor

CDP3326

1/2 hp 56C Frame 1750 rpm DC Motor
Item #100999767
  • 180 Armature Voltage
  • 1750 rpm Base Speed
  • TENV Enclosure
  • 56C Frame
1/2 hp 56C Frame 1750 rpm DC Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 180 Armature Voltage
  • 1750 rpm Base Speed
  • TENV Enclosure
  • 56C Frame

applications

  • Conveyors
  • Mixers
  • Packaging machinery
  • Other applications requiring variable speed and constant torque

features

  • NEMA C-face with removable base
  • Tach adaptable
  • Class F insulation, double sealed ball bearings
  • No dual mounting base holes on 33P type

compliances

  • 0
C Dimension 14.94 in
Winding Permanent Magnet
Enclosure Designation TENV - Totally Enclosed Non-Ventilated
Armature Voltage V 180 V
Motor Shaft Length 1.88 in
Ambient Temperature 104 °F
Frame Size 56C
Service Factor 1
Duty Cycle Continuous
BALD Family Names General Purpose
Base Rigid
Field Voltage PM
Drive End Bearing 6203
Washdown Duty No
Mult. Sym. K
Type 3336P
Dwg_Suffix D
Motor Shaft Size 5/8 in
Remarks SCR Drive Motor
Mount Type F1
Frame 56C
Base Speed 1750 rpm
Blower No. N/A
Armature Voltage 180 V
Armature Amps Full Load 2.5 A
Mounting C-Face - With Base
Drawing 33LY2051
Shaft Grounding No
Enclosure TENV
RPM Type 3
Motor Application General Purpose
Field Weakened rpm 1750 rpm
Shaft Dia. 0.625 in
Shaft Diameter 0.63 in
Mounting Style F-1
Armature Current 2.5
Overall Length 14.94 in
RefPicture CDP
Brush 2/BP5011CV01
Shaft Rotation Reversible
Standard CE, CSA, UR, WEEE, NEMA
Insulation Class F
Insulation F
Open End Bearing 6203
HP 1/2 hp
Frame Material Steel
Recommened Tachometer Kit TK3300
Field Amps Full Load PM
Armature Inertia 8.43
Recommended Control BC140
Weight 31.0 LB
EAN or UPC 781568124437
