CECP84316T-4

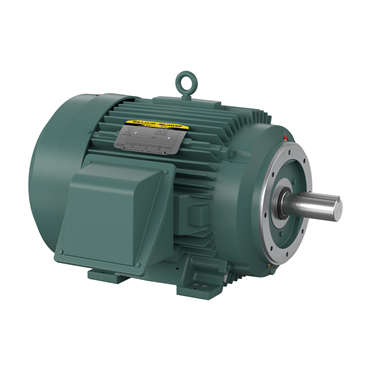

75 hp 365TC Frame Three Phase AC Motor

Item #101003337

Auto Replenish

each One-time purchase

Product Details

Petro-chemical plants
Mines
Foundries
Pulp and Paper plants
Waste management facilities
Chemical plants
Tropical climates
Other processing industry applications requiring protection against corrosion caused by severe environmental operating conditions

Service center personnel can advise what listings and approvals motors carry, but cannot evaluate nor recommend what motors may be suitable for use in hazardous environments

Specifications

VoltCode	G
Shaft Rotation	Phase Seq-Std Rot (CCWODE)
Mounting Style	F-1
Rotation	R
Efficiency Group	Epact Efficient
Synchronous	1800 rpm
Voltage Rating	460
Efficiency	95.4%
Standard	CCSAUSEEV, NEMA_PREMIUM, UR, NEMA
Full Load Pf	85
BALD Family Names	Premium Efficient, C-Face, Nema Premium™, Severe Duty
Hz	60 Hz
End Plate	C-Face
Overall Length	33.48 in
Frequency	60 Hz
Phase	Three Phase
Frame Size	365TC
Mult. Sym.	L1
Duty Cycle	Continuous
Type	1482M
Speed	1780 rpm
Drive End Bearing	6313
Power Factor	86
NEMA Design	B
Useable at 208V	No
Full Load rpm	1780 rpm
RPM	1800 rpm
Motor Application	Mill & Chemical, Premium Efficient
Full Load Efficiency	95.4 %
Insulation Class	F
Enclosure	TEFC
Service Factor	1.15
Speed [Max]	2700
Mounting	C-Face - With Base
Mount Type	F1
Inverter Duty	Inverter Ready
Ambient Temperature	104 °F
Rated Efficiency	95.4 %
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
Design	B
Shaft Dia.	2.375 in
Product Line	RG
Frame	365TC
RefPicture	CECP
Open End Bearing	6312
IP Rating	IP56
HP	75
Multispeed	Single Speed
Full Load Amps	86.5
Frame Material	Iron
Shaft Diameter	2.38 in
Shaft Grounding	No
Washdown Duty	No
Poles	4
Base	Rigid
Full Load Current	86
Brake Feature	No
Voltage	460 V
Weight	993.0 LB
EAN or UPC	781568348185
