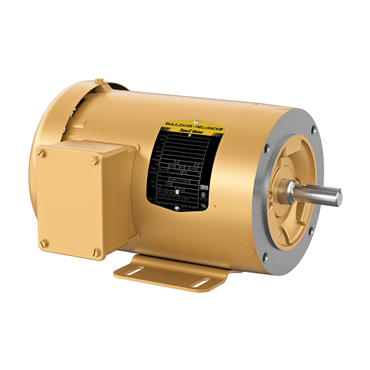

1 hp 56C Frame Three Phase AC Motor

CEM3546

1 hp 56C Frame Three Phase AC Motor
Item #100999823
  • TEFC Enclosure
  • 1 hp
  • 60 Hz Frequency
  • 56C Frame
1 hp 56C Frame Three Phase AC Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • NEMA PremiumNEMA Premium
  • TEFC Enclosure
  • 1 hp
  • 60 Hz Frequency
  • 56C Frame

features

  • Heavy-gauge steel frame
  • Locked DE bearing to allow mounting in any configuration
  • Insulated copper wire
  • Designed for longevity with a three-year warranty on premium efficient Super-E® motors
  • Low loss, electrical grade lamination steel
  • Energy Reduction: Uses less energy than competing products with same function and purpose
  • Meets Federal Energy Management Program (FEMP) energy efficiency levels
  • Motor meets NEMA Premium® efficiency standards for electric motors to conserve energy over extended time periods where continuous or frequent duty is required
  • Suitable for inverter use per NEMA MG1 part 31.4.4.2
Mounting C-Face - With Base
Mount Type F1
Conduit Box Material Steel
Rated Efficiency 85.5 %
Voltage Rating 230/460
Standard CSA EEV, NEMA_PREMIUM, UR, NEMA
Duty Cycle Continuous
Efficiency 85.5%
Synchronous 1800 rpm
Insulation Class F
Ambient Temperature 104 °F
Hz 60 Hz
Frame 56C
Phase Three Phase
Shaft Dia. 0.625 in
Voltage 230 V, 460 V
RPM 1,800 rpm
End Plate C-Face
Multispeed Single Speed
Type AC Motor
Enclosure TEFC
Poles 4
Shaft Rotation Reversible: Connected Standard
NEMA Design B
Overall Length 12.23 in
Shaft Grounding No
Efficiency Group Premium Efficient
Frequency 60 Hz
Shaft Diameter 0.63 in
Frame Size 56C
Base Rigid
Speed 1770 rpm
Frame Material Steel
Full Load Current 3.2/1.6
Inverter Duty Inverter Duty
Service Factor 1.15
Power Factor 69
HP 1
Weight 36.0 LB
EAN or UPC 781568422670
