CEM4400T

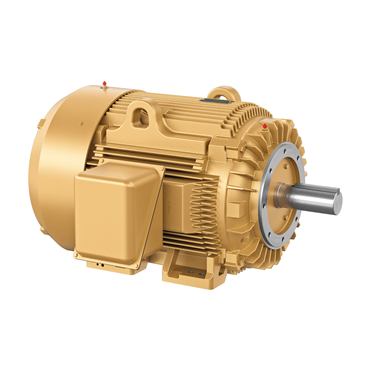

100 hp 405TC Frame Three Phase AC Motor

Item #101000892

Auto Replenish

each One-time purchase

Alternate Products

Leeson 199076.00

.100HP.1800RPM.405TC.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID-C.GENE RAL PURPOSE.

Item #113080663

each

Compare

Product Details

Only the end user or a qualified underwriter is to identify and select the proper class, group, division and temperature code motor to meet the requirements of each installation
Service center personnel can advise what listings and approvals motors carry, but cannot evaluate nor recommend what motors may be suitable for use in hazardous environments
Motors misapplied in hazardous environments can cause a fire or explosion, resulting in destruction of property, serious injury or death

Specifications

Full Load Pf	90
Enclosure	TEFC
Frame Material	Iron
Frequency	60 Hz
Useable at 208V	No
Hz	60 Hz
Motor Application	General Purpose, Premium Efficient
Inverter Duty	Inverter Ready
Rated Efficiency	95.4 %
RPM	1800 rpm
Shaft Dia.	2.875 in
Mount Type	F1
End Plate	C-Face
Shaft Rotation	Reversible
Frame Size	405TC
Mounting	C-Face - With Base
Full Load Current	224/112
Efficiency Group	Premium Efficient
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
VoltCode	F
Shaft Grounding	No
Type	1684M
Design	B
NEMA Design	B
Multispeed	Single Speed
Voltage	230 V, 460 V
Shaft Diameter	2.88 in
BALD Family Names	Premium Efficient, C-Face, Nema Premium™
Mult. Sym.	D3
Brake Feature	No
Drive End Bearing	6316
HP	100
Speed	1785 rpm
Standard	CCSAUSEEV, NEMA
Insulation Class	B
Open End Bearing	6313
Full Load rpm	1780 rpm
Full Load Efficiency	95.4 %
Mounting Style	F-1
Product Line	RG
Synchronous	1800 rpm
Efficiency	95.4%
Phase	Three Phase
Power Factor	87
Full Load Amps	109
Poles	4
Washdown Duty	No
Service Factor	1.15
Duty Cycle	Continuous
Ambient Temperature	104 °F
Rotation	R
Voltage Rating	460, 230, 208
Frame	405TC
RefPicture	CEM4153T
Base	Rigid
Overall Length	38.19 in
Weight	1360.0 LB
EAN or UPC	781568435533
