CESSWDM3546

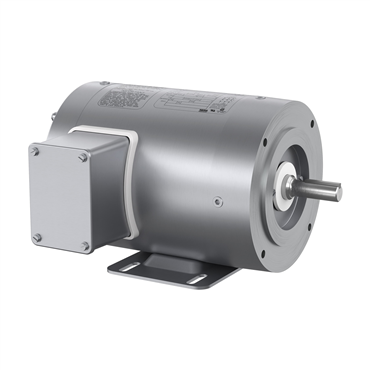

1 hp 56C Frame Three Phase AC Motor

Item #101792811

Auto Replenish

each One-time purchase

Product Details

All external surfaces are 300 series stainless steel
Moisture-resistant insulation system
Four condensation drains in each endplate
Endplate rabbets sealed and conduit box gasketed
Labyrinth seals
IP56 rating: Protected from limited dust ingress and from high pressure water jets from any direction

Specifications

Open End Bearing	6203
Enclosure Designation	TENV - Totally Enclosed Non-Ventilated
Design	B
Voltage	230 V, 460 V
Motor Application	Washdown Duty
Efficiency Group	Premium Efficient
End Plate	C-Face
Service Factor	1.15
Full Load Pf	78
Standard	CSA EEV, NEMA_PREMIUM, UR, NEMA
Hz	60 Hz
Efficiency	85.5%
Rotation	R
VoltCode	E
Mult. Sym.	K
Mounting	C-Face - With Base
Poles	4
Type	3526M
Phase	Three Phase
Duty Cycle	Continuous
Drive End Bearing	6205
Shaft Grounding	No
Speed	1770 rpm
Useable at 208V	Yes
Multispeed	Single Speed
RPM	1,800 rpm
Mounting Style	F-1
NEMA Design	B
Power Factor	66
Shaft Dia.	0.625 in
Washdown Duty	Yes
Voltage Rating	230/460
Frame	56C
Ambient Temperature	104 °F
Conduit Box Material	Steel
Product Line	RG
Inverter Duty	Inverter Ready
Base	Rigid
Motor Shaft Size	5/8 in
Enclosure	TENV
Motor Shaft Length	1.88 in
RefPicture	CESS
Full Load Current	3.34/1.67
Mount Type	F1
C Dimension	12.09 in
Full Load Efficiency	86.5 %
Rated Efficiency	85.5 %
Frame Size	56C
Shaft Diameter	0.63 in
Frequency	60 Hz
Brake Feature	No
Full Load rpm	1740 rpm
Insulation Class	F
Shaft Rotation	Reversible
Synchronous	1800 rpm
Frame Material	Stainless Steel
Overall Length	11.09 in
HP	1
Full Load Amps	1.4
Weight	41.0 LB
EAN or UPC	781568507919
