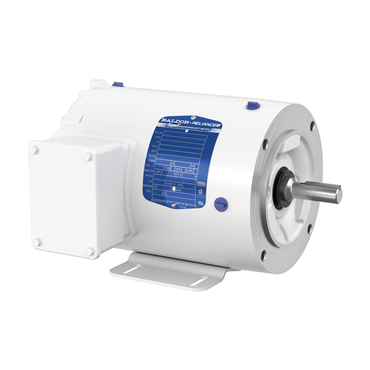

1 hp 56C Frame Three Phase AC Motor

CEWDM3546

1 hp 56C Frame Three Phase AC Motor
Item #101004044
  • TENV Enclosure
  • 1 hp
  • 60 Hz Frequency
  • 56C Frame
1 hp 56C Frame Three Phase AC Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • NEMA PremiumNEMA Premium
  • IP55IP55
  • TENV Enclosure
  • 1 hp
  • 60 Hz Frequency
  • 56C Frame

features

  • 300 series stainless steel hardware
  • Stainless steel shaft extension
  • White epoxy, corrosion resistant finish
  • Double-sealed bearings
  • Moisture sealant on bolt heads
  • Neoprene gaskets
  • Forsheda® running contact v-ring slinger
  • Class F insulation
  • NEMA Premium® efficiency
  • Tropicalization
  • Three-year warranty
  • Food processing
  • Any application where motor receives washdown on a regular basis
Voltage 230 V, 460 V
Rated Efficiency 85.5 %
RefPicture CEWD
Motor Shaft Size 5/8 in
HP 1
Useable at 208V No
Mounting C-Face - With Base
Phase Three Phase
Standard CSA EEV, NEMA_PREMIUM, UR, NEMA
Shaft Grounding No
Drive End Bearing 6205
Base Rigid
Conduit Box Material Steel
Power Factor 66
Multispeed Single Speed
Frame Size 56C
Synchronous 1800 rpm
Type 3532M
Mounting Style F-1
Inverter Duty Inverter Ready
Enclosure Designation TENV - Totally Enclosed Non-Ventilated
Washdown Duty Yes
Insulation Class F
Enclosure TENV
Duty Cycle Continuous
Motor Application Washdown Duty
Service Factor 1.15
Frame Material Steel
VoltCode F
Mult. Sym. K
Full Load Current 3.34/1.67
Frequency 60 Hz
Full Load rpm 1750 rpm
Frame 56C
Motor Shaft Length 2.06 in
Brake Feature No
Shaft Dia. 0.625 in
Poles 4
Overall Length 12.05 in
Hz 60 Hz
Rotation R
Ambient Temperature 104 °F
RPM 1,800 rpm
Efficiency 85.5%
Design B
Speed 1770 rpm
Full Load Efficiency 87.5 %
Open End Bearing 6203
Mount Type F1
End Plate C-Face
Product Line RG
Shaft Diameter 0.63 in
NEMA Design B
Efficiency Group Premium Efficient
Shaft Rotation Reversible
Full Load Amps 1.4
Voltage Rating 230/460
C Dimension 12.94 in
Full Load Pf 80
Weight 41.0 LB
EAN or UPC 781568487099
