CEWDM3555

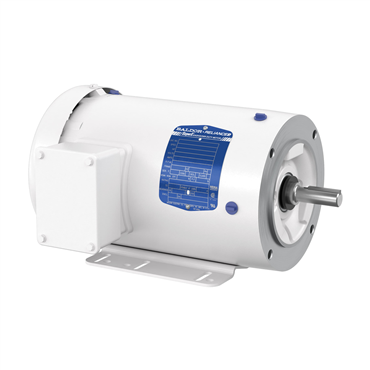

2 hp 56HCY Frame Three Phase AC Motor

Item #101004049

Auto Replenish

each One-time purchase

Product Details

Specifications

Efficiency Group	Premium Efficient
Full Load Efficiency	86.5 %
Rated Efficiency	85.5 %
Washdown Duty	Yes
Standard	CSA EEV, NEMA_PREMIUM, UR, NEMA
Useable at 208V	Yes
Motor Shaft Size	5/8 in
Voltage	575 V
Ambient Temperature	104 °F
Poles	2
Mounting Style	F-1
Conduit Box Material	Steel
Motor Application	Washdown Duty
HP	2
Phase	Three Phase
Full Load rpm	3450 rpm
Hz	60 Hz
Mount Type	F1
Frame Material	Steel
RefPicture	CEWD
Service Factor	1.15
Overall Length	13.23 in
Duty Cycle	Continuous
Shaft Grounding	No
Drive End Bearing	6205
Full Load Pf	85
Motor Shaft Length	1.88 in
Base	Rigid
Shaft Dia.	0.625 in
Shaft Diameter	0.63 in
Shaft Rotation	Reversible
NEMA Design	B
Efficiency	85.5%
Mult. Sym.	K
Rotation	R
Mounting	C-Face - With Base
C Dimension	14.12 in
Synchronous	3600 rpm
Voltage Rating	230/460
End Plate	C-Face
Frame	56HCY
RPM	3,600 rpm
Brake Feature	No
Open End Bearing	6203
Frame Size	56HCY
VoltCode	E
Insulation Class	F
Speed	3490 rpm
Full Load Amps	2.5
Power Factor	88
Enclosure	TEFC
Design	B
Frequency	60 Hz
Product Line	RG
Type	3532M
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
Inverter Duty	Inverter Ready
Multispeed	Single Speed
Full Load Current	5/2.5
Weight	35.0 LB
EAN or UPC	781568457412
