CEWDM3555T

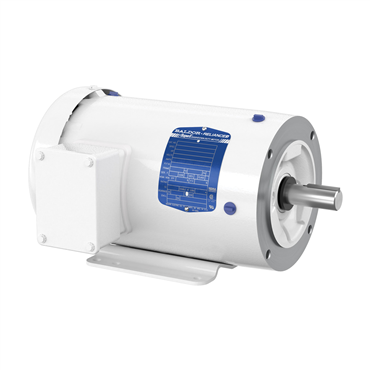

2 hp 145TC Frame Three Phase AC Motor

Item #101004050

Auto Replenish

each One-time purchase

Product Details

Specifications

Inverter Duty	Inverter Ready
Mounting	C-Face - With Base
Service Factor	1.15
Enclosure	TEFC
Efficiency	85.5%
Product Line	RG
Efficiency Group	Premium Efficient
Base	Rigid
VoltCode	E
Rotation	R
Shaft Dia.	0.875 in
Drive End Bearing	6205
Speed	3490 rpm
Useable at 208V	Yes
Full Load Efficiency	86.5 %
Shaft Diameter	0.88 in
Motor Shaft Length	2.12 in
Hz	60 Hz
End Plate	C-Face
Voltage	230 V, 460 V
Shaft Grounding	No
Full Load Current	5/2.5
Frequency	60 Hz
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
Motor Application	Washdown Duty
Full Load rpm	3450 rpm
Synchronous	3600 rpm
HP	2
Design	B
RefPicture	CEWD
Poles	2
Mount Type	F1
RPM	3,600 rpm
NEMA Design	B
Open End Bearing	6203
Mounting Style	F-1
Standard	CSA EEV, NEMA_PREMIUM, UR, NEMA
Duty Cycle	Continuous
Motor Shaft Size	7/8 in
Multispeed	Single Speed
Shaft Rotation	Reversible
C Dimension	14.12 in
Mult. Sym.	L1
Washdown Duty	Yes
Ambient Temperature	104 °F
Overall Length	13.29 in
Phase	Three Phase
Conduit Box Material	Steel
Rated Efficiency	85.5 %
Insulation Class	F
Full Load Amps	2.5
Full Load Pf	85
Voltage Rating	230/460
Frame Material	Steel
Power Factor	88
Brake Feature	No
Frame	145TC
Frame Size	145TC
Type	3532M
Weight	45.0 LB
EAN or UPC	781568462911
