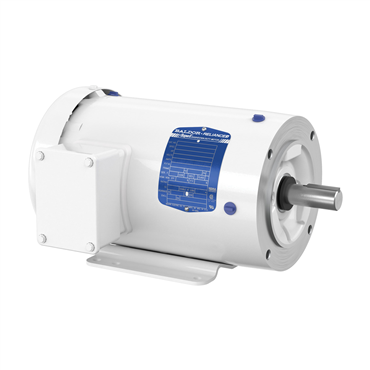

2 hp 145TC Frame Three Phase AC Motor

CEWDM3558T

2 hp 145TC Frame Three Phase AC Motor
Item #101004052
  • TEFC Enclosure
  • 2 hp
  • 60 Hz Frequency
  • 145TC Frame
2 hp 145TC Frame Three Phase AC Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • NEMA PremiumNEMA Premium
  • IP55IP55
  • TEFC Enclosure
  • 2 hp
  • 60 Hz Frequency
  • 145TC Frame

features

  • 300 series stainless steel hardware
  • Stainless steel shaft extension
  • White epoxy, corrosion resistant finish
  • Double-sealed bearings
  • Moisture sealant on bolt heads
  • Neoprene gaskets
  • Forsheda® running contact v-ring slinger
  • Class F insulation
  • NEMA Premium® efficiency
  • Tropicalization
  • Three-year warranty
  • Food processing
  • Any application where motor receives washdown on a regular basis
Ambient Temperature 104 °F
Efficiency Group Premium Efficient
Insulation Class F
Poles 4
Frame 145TC
Brake Feature No

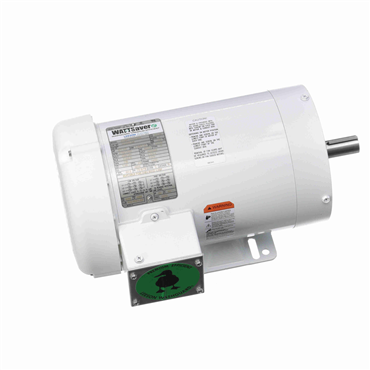

Motor Application Washdown Duty
Frame Material Steel
Shaft Diameter 0.88 in
Mounting Style F-1
Shaft Rotation Reversible
Hz 60 Hz
Service Factor 1.15
Frame Size 145TC
Motor Shaft Length 2.12 in
Duty Cycle Continuous
Full Load rpm 1725 rpm
Multispeed Single Speed
Type 3532M
Design B
Enclosure Designation TEFC - Totally Enclosed Fan Cooled
Voltage Rating 230/460
Mounting C-Face - With Base
Shaft Grounding No
C Dimension 14.17 in
Full Load Efficiency 86.5 %
HP 2
Full Load Pf 82
Motor Shaft Size 7/8 in
Rotation R
Rated Efficiency 86.5 %
NEMA Design B
Conduit Box Material Steel
Useable at 208V Yes
Frequency 60 Hz
Shaft Dia. 0.875 in
Synchronous 1800 rpm
Standard CSA EEV, NEMA_PREMIUM, UR, NEMA
Enclosure TEFC
Washdown Duty Yes
Power Factor 77
Mult. Sym. L1
Phase Three Phase
Efficiency 86.5%
End Plate C-Face
Full Load Amps 2.7
Full Load Current 5.6/2.8
Voltage 230 V, 460 V
Mount Type F1
Drive End Bearing 6205
Product Line RG
VoltCode E
RPM 1,800 rpm
Open End Bearing 6203
RefPicture CEWD
Base Rigid
Overall Length 13.29 in
Speed 1760 rpm
Inverter Duty Inverter Ready
Weight 46.0 LB
EAN or UPC 781568457436
