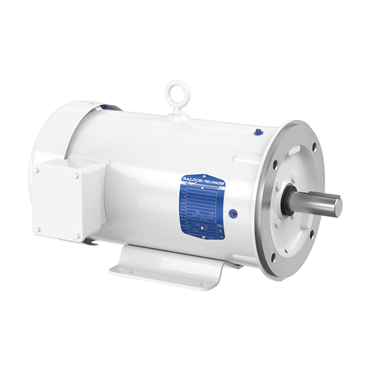

5 hp 184TC Frame Three Phase AC Motor

CEWDM3615T

5 hp 184TC Frame Three Phase AC Motor
Item #101004058
  • TEFC Enclosure
  • 5 hp
  • 60 Hz Frequency
  • 184TC Frame
5 hp 184TC Frame Three Phase AC Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • NEMA PremiumNEMA Premium
  • IP55IP55
  • TEFC Enclosure
  • 5 hp
  • 60 Hz Frequency
  • 184TC Frame

features

  • 300 series stainless steel hardware
  • Stainless steel shaft extension
  • White epoxy, corrosion resistant finish
  • Double-sealed bearings
  • Moisture sealant on bolt heads
  • Neoprene gaskets
  • Forsheda® running contact v-ring slinger
  • Class F insulation
  • NEMA Premium® efficiency
  • Tropicalization
  • Three-year warranty
  • Food processing
  • Any application where motor receives washdown on a regular basis
Full Load Pf 80
Voltage Rating 230/460
RefPicture CEWD
Voltage 230 V, 460 V
Drive End Bearing 6206
Frame Size 184TC
C Dimension 18.04 in
Standard CSA EEV, NEMA_PREMIUM, UR, NEMA
Shaft Diameter 1.13 in
Motor Shaft Size 1 1/8 in
Brake Feature No
Synchronous 1800 rpm
Frame Material Steel
Multispeed Single Speed
Rotation R
Shaft Dia. 1.125 in
Full Load rpm 1750 rpm
Ambient Temperature 104 °F
Phase Three Phase
Full Load Current 13.4/6.7
Design B
Hz 60 Hz
Overall Length 18.04 in
Duty Cycle Continuous
Speed 1755 rpm
HP 5
RPM 1,800 rpm
Service Factor 1.15
Open End Bearing 6205
Base Rigid
Type 3643M
Rated Efficiency 89.5 %
Motor Application Washdown Duty
Full Load Efficiency 90.2 %
Mounting Style F-1
Efficiency Group Premium Efficient
VoltCode E1
Enclosure TEFC
Shaft Grounding No
Shaft Rotation Reversible
Inverter Duty Inverter Ready
Useable at 208V Yes
Full Load Amps 6.5
Mount Type F1
Power Factor 78
Product Line RG
Frequency 60 Hz
End Plate C-Face
Mounting C-Face - With Base
Washdown Duty Yes
Motor Shaft Length 2 3/4 in
Insulation Class F
Frame 184TC
Poles 4
Mult. Sym. L1
Enclosure Designation TEFC - Totally Enclosed Fan Cooled
Efficiency 89.5%
NEMA Design B
Conduit Box Material Steel
Weight 96.0 LB
EAN or UPC 781568457474
  • NEMA PremiumNEMA Premium
  • IP55IP55
