CEWDM3709T

7 1/2 hp 213TC Frame Three Phase AC Motor

Item #101004060

Auto Replenish

each One-time purchase

Alternate Products

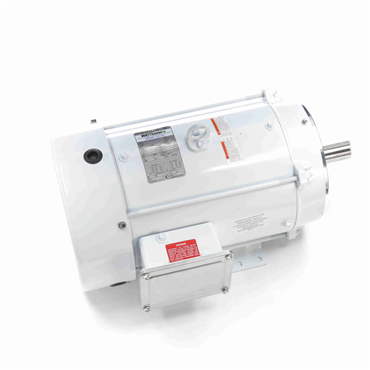

Marathon Electric Motors 141120.00

AC Motor

Item #101435472

each

Compare

Product Details

Specifications

Service Factor	1.15
Power Factor	84
Product Line	RG
RefPicture	CEWD
Hz	60 Hz
Efficiency Group	Premium Efficient
Design	A
C Dimension	19.78 in
Rotation	R
HP	7 1/2
Motor Shaft Length	3.12 in
Synchronous	3600 rpm
Drive End Bearing	6307
Full Load rpm	3500 rpm
Multispeed	Single Speed
Motor Shaft Size	1 3/8 in
VoltCode	E
Full Load Amps	8.6
Voltage	230 V, 460 V
Shaft Grounding	No
Rated Efficiency	89.5 %
Duty Cycle	Continuous
NEMA Design	A
Base	Rigid
Frame	213TC
Insulation Class	F
Overall Length	18.64 in
Full Load Pf	90
Type	3738M
Brake Feature	No
Frequency	60 Hz
Useable at 208V	Yes
Full Load Current	18/9
End Plate	C-Face
Ambient Temperature	104 °F
Standard	CSA EEV, NEMA_PREMIUM, UR, NEMA
Mounting Style	F-1
Shaft Diameter	1.38 in
Inverter Duty	Inverter Ready
Shaft Dia.	1.375 in
Efficiency	89.5%
Phase	Three Phase
Mounting	C-Face - With Base
RPM	3,600 rpm
Poles	2
Mult. Sym.	L1
Motor Application	Washdown Duty
Voltage Rating	230/460
Washdown Duty	Yes
Enclosure	TEFC
Full Load Efficiency	91 %
Speed	3520 rpm
Frame Size	213TC
Conduit Box Material	Steel
Shaft Rotation	Reversible
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
Mount Type	F1
Open End Bearing	6206
Frame Material	Steel
Weight	143.0 LB
EAN or UPC	781568457481
