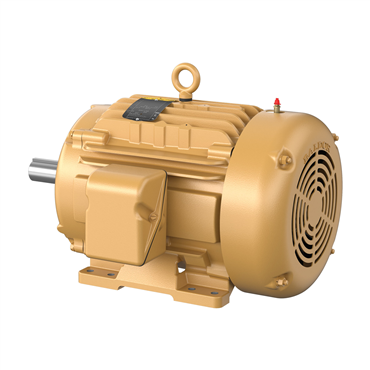

20 hp 256T Frame Three Phase AC Motor

EFM2334T

20 hp 256T Frame Three Phase AC Motor
Item #101001087
  • TEFC Enclosure
  • 20 hp
  • 60 Hz Frequency
  • 256T Frame
20 hp 256T Frame Three Phase AC Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • NEMA PremiumNEMA Premium
  • TEFC Enclosure
  • 20 hp
  • 60 Hz Frequency
  • 256T Frame

applications

  • Where continuous- or frequent-duty is required
  • To conserve energy over extended time periods

features

  • Copper windings
  • Ball bearings
  • Heavy-gauge steel frame with base seam welded
  • F-2 mount

caution

  • Only the end user or a qualified underwriter is to identify and select the proper class, group, division and temperature code motor to meet the requirements of each installation
  • Service center personnel can advise what listings and approvals motors carry, but cannot evaluate nor recommend what motors may be suitable for use in hazardous environments
  • Motors misapplied in hazardous environments can cause a fire or explosion, resulting in destruction of property, serious injury or death
Multispeed Single Speed
Base Rigid
Standard CSA EEV, NEMA_PREMIUM, UR, NEMA
Shaft Grounding No
Motor Shaft Size 1 5/8 in
Full Load Current 48/24
Conduit Box Material Cast Iron
Insulation Class F
Enclosure TEFC
Voltage Rating 460, 230
Enclosure Designation TEFC - Totally Enclosed Fan Cooled
Shaft Dia. 1.625 in
Speed 1770 rpm
RPM 1800 rpm
Washdown Duty No
Epact Nominal Full Load Efficiency 91 %
Rated Efficiency 93 %
RefPicture EFM2333T
Frame Size 256T
Inverter Duty Inverter Ready
Motor Application General Purpose
Full Load Efficiency 93 %
Shaft Rotation Reversible
Full Load Pf 84
NEMA Design A
HP 20
End Plate Standard
Useable at 208V Yes
Mounting Style F-2
Rotation R
Hz 60 Hz
Phase Three Phase
Brake Feature No
Power Factor 83
Drive End Bearing 6309
Duty Cycle Continuous
Motor Shaft Length 4 in
Ambient Temperature 104 °F
Mount Type F2
Overall Length 23.36 in
Full Load rpm 1765 rpm
Poles 4
Frequency 60 Hz
Type 0948M
BALD Family Names Premium Efficient, F-2 Mounting
Mult. Sym. L1
Synchronous 1800 rpm
Open End Bearing 6208
Efficiency Group Standard Efficient
Frame Material Iron
Service Factor 1.15
Voltage 230 V, 460 V
VoltCode E1
Shaft Diameter 1.63 in
Design B
Mounting Rigid Base
Full Load Amps 24
Product Line RG
Frame 256T
Efficiency 93%
Weight 356.0 LB
EAN or UPC 781568219393
