EJMM3154T

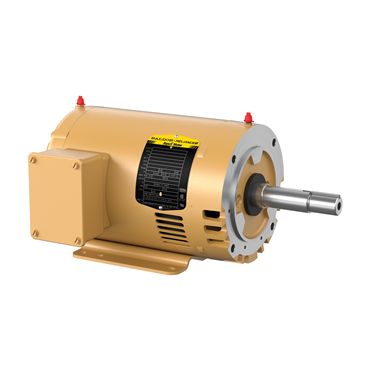

1 1/2 hp 145JM Frame Three Phase AC Motor

Item #101001122

Auto Replenish

each One-time purchase

Product Details

Energy saving close coupled pump applications where continuous- or frequent-duty is required
Suitable for use with inverter drives for variable torque and 20:1 constant torque

Specifications

Conduit Box Material	Steel
Speed	1770 rpm
Brake Feature	No
Frame Size	145JM
Washdown Duty	No
Service Factor	1.15
Product Line	RG
Mount Type	F1
BALD Family Names	Premium Efficient, Pump Motor, Nema Premium™
Duty Cycle	Continuous
Rated Efficiency	86.5 %
Shaft Rotation	Reversible
Inverter Duty	Inverter Ready
Voltage Rating	460, 230, 208
Efficiency	86.5%
Overall Length	13.75 in
Rotation	R
HP	1 1/2
Mult. Sym.	L1
Insulation Class	F
Design	B
Full Load Efficiency	86.5 %
Multispeed	Single Speed
Shaft Dia.	0.875 in
Mounting Style	F-1
Standard	CSA EEV, NEMA_PREMIUM, UR, NEMA
Motor Shaft Size	7/8 in
Full Load rpm	1740 rpm
Enclosure Designation	OPSB - Open Slotted Band
VoltCode	E
Mounting	Rigid Base
Phase	Three Phase
Power Factor	72
Motor Application	Pump Duty
Synchronous	1800 rpm
Open End Bearing	6203
Frame Material	Steel
Voltage	230 V, 460 V
Drive End Bearing	6206
Shaft Diameter	0.88 in
Full Load Pf	77
Enclosure	OPSB
Ambient Temperature	104 °F
Efficiency Group	Premium Efficient
Useable at 208V	Yes
RPM	1800 rpm
Base	Rigid
Full Load Amps	2.1
Type	3526M
NEMA Design	B
Poles	4
Frequency	60 Hz
RefPicture	EJMM
Full Load Current	4.6/2.3
Shaft Grounding	No
Hz	60 Hz
Frame	145JM
End Plate	C-Face
Weight	38.0 LB
EAN or UPC	781568138250
