EJMM3158T

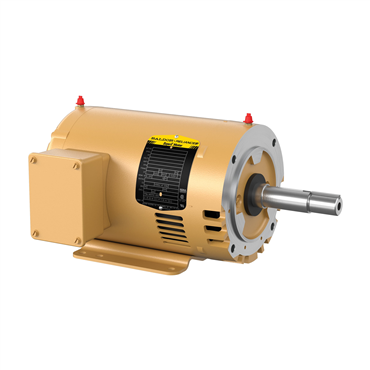

3 hp 145JM Frame Three Phase AC Motor

Item #101001125

Auto Replenish

each One-time purchase

Product Details

Energy saving close coupled pump applications where continuous- or frequent-duty is required
Suitable for use with inverter drives for variable torque and 20:1 constant torque

Specifications

Frequency	60 Hz
HP	3
Phase	Three Phase
Power Factor	87
Service Factor	1.15
Inverter Duty	Inverter Ready
Mounting	Rigid Base
RPM	3600 rpm
Shaft Dia.	0.875 in
Shaft Grounding	No
Efficiency	85.5%
Full Load Current	7.6/3.8
Brake Feature	No
Multispeed	Single Speed
Rotation	R
Mounting Style	F-1
Product Line	RG
Frame Size	145JM
Hz	60 Hz
Shaft Rotation	Reversible
Enclosure	OPSB
Motor Shaft Size	7/8 in
Frame Material	Steel
Full Load Amps	3.7
Efficiency Group	Premium Efficient
BALD Family Names	Premium Efficient, Pump Motor, Nema Premium™
Motor Application	Pump Duty
Overall Length	15.13 in
Speed	3450 rpm
RefPicture	EJMM
Ambient Temperature	104 °F
Duty Cycle	Continuous
Full Load Efficiency	87.5 %
Enclosure Designation	OPSB - Open Slotted Band
End Plate	C-Face
Standard	CSA EEV, NEMA_PREMIUM, UR, NEMA
Useable at 208V	Yes
Drive End Bearing	6206
Type	3535M
Full Load Pf	89
NEMA Design	B
Conduit Box Material	Steel
Mult. Sym.	L1
Shaft Diameter	0.88 in
VoltCode	E1
Full Load rpm	3450 rpm
Voltage	230 V, 460 V
Washdown Duty	No
Poles	2
Design	B
Insulation Class	F
Synchronous	3600 rpm
Base	Rigid
Voltage Rating	460, 230
Frame	145JM
Open End Bearing	6203
Mount Type	F1
Rated Efficiency	85.5 %
Weight	49.0 LB
EAN or UPC	781568138311
