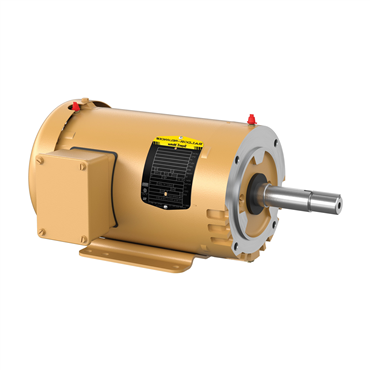

EJMM3555T

2 hp 143JM Frame Three Phase AC Motor

Item #101001137

Auto Replenish

each One-time purchase

Alternate Products

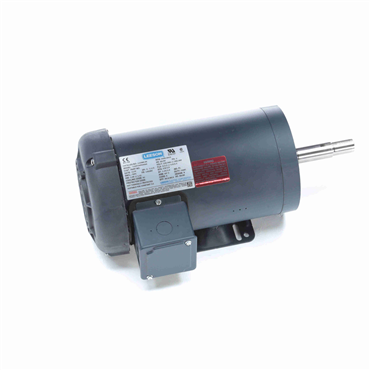

Leeson 122089.00

AC Motor

Item #112786577

each

Compare

Product Details

Energy saving close coupled pump applications where continuous- or frequent-duty is required
Suitable for use with inverter drives for variable torque and 20:1 constant torque

Specifications

Full Load Amps	2.5
Mounting	Rigid Base
Speed	3490 rpm
Poles	2
Frequency	60 Hz
VoltCode	E
Frame Material	Steel
Shaft Grounding	No
Mult. Sym.	L1
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
HP	2
Base	Rigid
Motor Application	Pump Duty, Premium Efficient
Full Load Current	5/2.5
Useable at 208V	Yes
Drive End Bearing	6206
RefPicture	EJMM
Washdown Duty	No
Mount Type	F1
Inverter Duty	Inverter Ready
Efficiency Group	Premium Efficient
Mounting Style	F-1
Voltage	230 V, 460 V
Rotation	R
Shaft Dia.	0.875 in
Conduit Box Material	Steel
Frame Size	143JM
Open End Bearing	6203
Power Factor	88
Shaft Diameter	0.88 in
Duty Cycle	Continuous
End Plate	C-Face
Phase	Three Phase
Synchronous	3600 rpm
Type	3532M
Shaft Rotation	Reversible
Multispeed	Single Speed
Design	B
Service Factor	1.15
BALD Family Names	Premium Efficient, Pump Motor, Nema Premium™
NEMA Design	B
Full Load Pf	85
Rated Efficiency	85.5 %
Efficiency	85.5%
Ambient Temperature	104 °F
Insulation Class	F
Frame	145JM
Full Load Efficiency	86.5 %
Standard	CSA EEV, NEMA_PREMIUM, UR, NEMA
RPM	3600 rpm
Enclosure	TEFC
Voltage Rating	460, 230, 208
Hz	60 Hz
Brake Feature	No
Full Load rpm	3450 rpm
Product Line	RG
Overall Length	15.41 in
Weight	47.0 LB
EAN or UPC	781568394816
