EJMM3559T

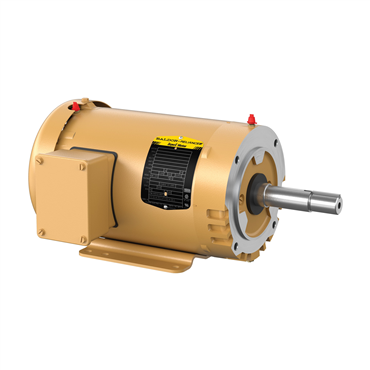

3 hp 143JM Frame Three Phase AC Motor

Item #101001139

Auto Replenish

each One-time purchase

Product Details

Energy saving close coupled pump applications where continuous- or frequent-duty is required
Suitable for use with inverter drives for variable torque and 20:1 constant torque

Specifications

Mounting	Rigid Base
Hz	60 Hz
Rated Efficiency	86.5 %
Washdown Duty	No
Useable at 208V	Yes
Frame Material	Steel
RPM	3600 rpm
Phase	Three Phase
Shaft Rotation	Reversible
Full Load Pf	92
Duty Cycle	Continuous
VoltCode	E
Frequency	60 Hz
Full Load Amps	3.5
Efficiency Group	Premium Efficient
Speed	3450 rpm
Overall Length	16.29 in
Shaft Dia.	0.875 in
Inverter Duty	Inverter Ready
Enclosure	TEFC
Motor Application	Pump Duty, Premium Efficient
Voltage	230 V, 460 V
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
Ambient Temperature	104 °F
Multispeed	Single Speed
Synchronous	3600 rpm
Drive End Bearing	6206
Full Load Current	7.2/3.6
Service Factor	1.15
HP	3
Base	Rigid
Conduit Box Material	Steel
Full Load rpm	3450 rpm
Poles	2
Standard	CSA EEV, NEMA_PREMIUM, UR, NEMA
Rotation	R
BALD Family Names	Premium Efficient, Pump Motor, Nema Premium™
Efficiency	86.5%
Design	B
Voltage Rating	460, 230, 208
Brake Feature	No
Shaft Diameter	0.88 in
End Plate	C-Face
Full Load Efficiency	87.5 %
Insulation Class	F
Type	3540M
Mount Type	F1
Shaft Grounding	No
Frame Size	143JM
RefPicture	EJMM
Product Line	RG
Mounting Style	F-1
Open End Bearing	6203
Mult. Sym.	L1
Power Factor	92
NEMA Design	B
Frame	145JM
Weight	54.0 LB
EAN or UPC	781568394823
