EJMM3610T

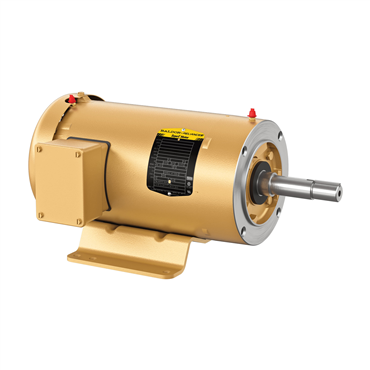

3 hp 182JM Frame Three Phase AC Motor

Item #101001140

Auto Replenish

each One-time purchase

Product Details

Energy saving close coupled pump applications where continuous- or frequent-duty is required
Suitable for use with inverter drives for variable torque and 20:1 constant torque

Specifications

Mounting Style	F-1
NEMA Design	B
Full Load Amps	3.5
VoltCode	E
Synchronous	3600 rpm
Brake Feature	No
Voltage	575 V
Poles	2
Conduit Box Material	Steel
Efficiency Group	Premium Efficient
Full Load rpm	3450 rpm
Shaft Dia.	0.875 in
Shaft Diameter	0.88 in
Hz	60 Hz
Design	B
Mounting	Rigid Base
Frame Size	182JM
Base	Rigid
Phase	Three Phase
Frame	182JM
Speed	3450 rpm
Rated Efficiency	86.5 %
Efficiency	86.5%
Full Load Current	7.2/3.6
End Plate	C-Face
Insulation Class	F
RPM	3600 rpm
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
Standard	CSA EEV, NEMA_PREMIUM, UR, NEMA
Power Factor	92
Type	3540M
Mount Type	F1
Frame Material	Steel
Shaft Grounding	No
Service Factor	1.15
Useable at 208V	Yes
Frequency	60 Hz
BALD Family Names	Premium Efficient, Pump Motor, Nema Premium™
Mult. Sym.	L1
Full Load Pf	92
Drive End Bearing	6207
Product Line	RG
Voltage Rating	460, 230, 208
Inverter Duty	Inverter Ready
Rotation	R
Motor Application	Pump Duty, Premium Efficient
Overall Length	16.8 in
Shaft Rotation	Reversible
Washdown Duty	No
Enclosure	TEFC
Open End Bearing	6203
Duty Cycle	Continuous
Multispeed	Single Speed
RefPicture	EJMM
HP	3
Ambient Temperature	104 °F
Full Load Efficiency	87.5 %
Weight	56.0 LB
EAN or UPC	781568394830
