EJMM3613T

5 hp 184JM Frame Three Phase AC Motor

Item #101001142

Auto Replenish

each One-time purchase

Alternate Products

Leeson G131580.00

.5HP.3510RPM.184JM.TEFC.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID C.C184T34FK39A.

Item #110725179

each

Compare

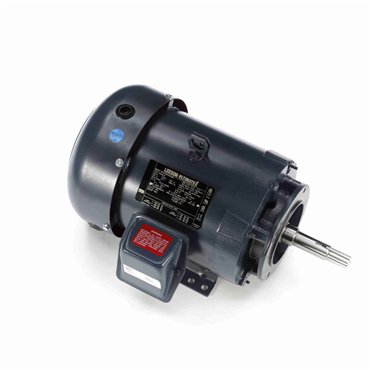

Leeson 199768.00

AC Motor

Item #112786881

each

Compare

Product Details

Energy saving close coupled pump applications where continuous- or frequent-duty is required
Suitable for use with inverter drives for variable torque and 20:1 constant torque

Specifications

Voltage Rating	460, 230, 208
Full Load Pf	95
Frame Size	184JM
Ambient Temperature	104 °F
Full Load Efficiency	89.5 %
Rotation	R
Washdown Duty	No
Frequency	60 Hz
Poles	2
Rated Efficiency	88.5 %
Frame Material	Steel
Duty Cycle	Continuous
Open End Bearing	6205
Full Load Amps	5.6
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
Useable at 208V	Yes
Product Line	RG
Shaft Dia.	0.875 in
Design	B
Mount Type	F1
Full Load Current	11.6/5.8
Mounting Style	F-1
Standard	CSA EEV, NEMA_PREMIUM, UR, NEMA
Phase	Three Phase
Conduit Box Material	Steel
Type	3634M
Efficiency Group	Premium Efficient
Enclosure	TEFC
End Plate	C-Face
Motor Application	Pump Duty, Premium Efficient
Frame	184JM
RPM	3600 rpm
Drive End Bearing	6207
Base	Rigid
Speed	3470 rpm
Power Factor	91
RefPicture	EJMM
Mounting	Rigid Base
Full Load rpm	3500 rpm
Synchronous	3600 rpm
Multispeed	Single Speed
Shaft Grounding	No
NEMA Design	A
Service Factor	1.15
Brake Feature	No
Hz	60 Hz
Shaft Diameter	0.88 in
VoltCode	E
Insulation Class	F
Mult. Sym.	L1
Overall Length	18.06 in
Efficiency	88.5%
Shaft Rotation	Reversible
Voltage	230 V, 460 V
BALD Family Names	Premium Efficient, Pump Motor, Nema Premium™
HP	5
Weight	79.0 LB
EAN or UPC	781568394854
