EJMM3709T

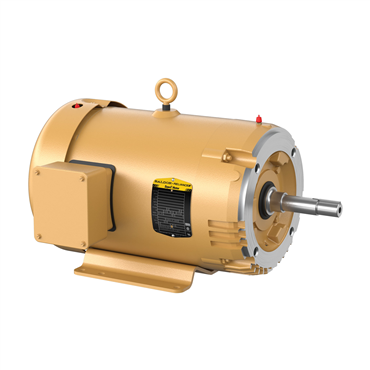

7 1/2 hp 213JM Frame Three Phase AC Motor

Item #101001144

Auto Replenish

each One-time purchase

Alternate Products

Leeson 132027

POSSIBLE SUB LEES G132027

Item #101552019

each

Compare

Leeson 199779.00

.7.5 HP.3600RPM.213JM.TEFC.230/460V.3PH.60HZ.CONT.40C.RIGID C FACE.JM PUMP.

Item #112786887

each

Compare

Leeson G132027.00

.7 1/2HP.3505RPM.213JM.TEFC.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID C.C184T34FK41A.

Item #113080164

each

Compare

Product Details

Energy saving close coupled pump applications where continuous- or frequent-duty is required
Suitable for use with inverter drives for variable torque and 20:1 constant torque

Specifications

NEMA Design	A
Base	Rigid
Useable at 208V	Yes
Mounting	Rigid Base
Conduit Box Material	Steel
Type	3733M
Insulation Class	F
Phase	Three Phase
Speed	3520 rpm
Full Load rpm	3525 rpm
Service Factor	1.15
RPM	3600 rpm
Brake Feature	No
Voltage Rating	460, 230
Full Load Current	19-18/9
Standard	CSA EEV, NEMA_PREMIUM, UR, NEMA
Shaft Diameter	0.88 in
Open End Bearing	6206
BALD Family Names	Premium Efficient, Pump Motor, Nema Premium™
Rated Efficiency	89.5 %
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
Efficiency Group	Premium Efficient
Duty Cycle	Continuous
Hz	60 Hz
Voltage	575 V
VoltCode	E1
Ambient Temperature	104 °F
Shaft Rotation	Reversible
Design	A
Enclosure	TEFC
Frequency	60 Hz
Frame	213JM
Synchronous	3600 rpm
Shaft Dia.	0.875 in
Shaft Grounding	No
Mult. Sym.	L1
Frame Material	Steel
RefPicture	EJMM
End Plate	C-Face
Mounting Style	F-1
Overall Length	19.76 in
Power Factor	84
Efficiency	89.5%
Poles	2
Full Load Pf	87
Inverter Duty	Inverter Ready
Mount Type	F1
Full Load Efficiency	91 %
HP	7 1/2
Full Load Amps	8.9
Motor Application	Pump Duty, Premium Efficient
Product Line	RG
Multispeed	Single Speed
Frame Size	213JM
Washdown Duty	No
Rotation	R
Drive End Bearing	6309
Weight	125.0 LB
EAN or UPC	781568394861
