EJMM4109T

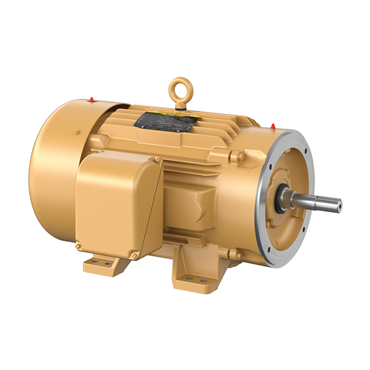

40 hp 324JM Frame Three Phase AC Motor

Item #101001153

Auto Replenish

each One-time purchase

Product Details

Energy saving close coupled pump applications where continuous- or frequent-duty is required
Suitable for use with inverter drives for variable torque and 20:1 constant torque

Specifications

Motor Application	Pump Duty, Premium Efficient
Base	Rigid
NEMA Design	A
Drive End Bearing	6312
BALD Family Names	Premium Efficient, Pump Motor, Nema Premium™
Speed	3530 rpm
Type	1240M
Conduit Box Material	Cast Iron
Useable at 208V	Yes
Full Load rpm	3540 rpm
VoltCode	E1
Service Factor	1.15
Full Load Efficiency	93.6 %
Product Line	RG
RefPicture	EJMM
Mount Type	F1
Overall Length	30.69 in
Frame Size	324JM
Efficiency Group	Premium Efficient
Ambient Temperature	104 °F
Open End Bearing	6311
Shaft Rotation	Reversible
HP	40
Efficiency	92.4%
End Plate	C-Face
Washdown Duty	No
Shaft Diameter	1.25 in
Voltage Rating	460, 230
Inverter Duty	Inverter Ready
Rated Efficiency	92.4 %
Mounting Style	F-1
Multispeed	Single Speed
RPM	3600 rpm
Enclosure	TEFC
Insulation Class	F
Power Factor	90
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
Shaft Dia.	1.25 in
Frame	324JM
Hz	60 Hz
Voltage	230 V, 460 V
Rotation	R
Poles	2
Frame Material	Iron
Mounting	Rigid Base
Design	B
Full Load Amps	44
Standard	CSA EEV, NEMA_PREMIUM, UR, NEMA
Duty Cycle	Continuous
Full Load Current	90/45
Full Load Pf	90
Shaft Grounding	No
Synchronous	3600 rpm
Frequency	60 Hz
Brake Feature	No
Mult. Sym.	L1
Phase	Three Phase
Weight	487.0 LB
EAN or UPC	781568394953
