EL3504

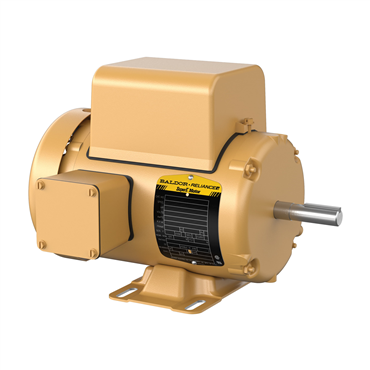

1/2 hp 56 Frame Single Phase AC Motor

Item #100999971

Auto Replenish

each One-time purchase

Product Details

Motors misapplied in hazardous environments can cause a fire or explosion, resulting in destruction of property, serious injury or death
Only the end user or a qualified underwriter is to identify and select the proper class, group, division and temperature code motor to meet the requirements of each installation
Service center personnel can advise what listings and approvals motors carry, but cannot evaluate nor recommend what motors may be suitable for use in hazardous environments

Specifications

Synchronous	1800 rpm
Rotation	R
Efficiency	78.5%
Multispeed	Single Speed
Poles	4
Shaft Grounding	No
Full Load rpm	1745 rpm
RefPicture	EL3605T
Standard	CSA, CSA EEV, NEMA_PREMIUM, UR, NEMA
Speed	1745 rpm
Frame Size	56
Enclosure	TEFC
HP	1/2
VoltCode	B
Voltage Rating	230, 115
Full Load Pf	89
Shaft Dia.	0.625 in
NEMA Design	N
Useable at 208V	No
Motor Shaft Length	1 7/8 in
Frame Material	Steel
Base	Rigid
End Plate	Standard
Rated Efficiency	78.5 %
Power Factor	89
Shaft Diameter	0.63 in
Full Load Amps	2.3
Efficiency Group	Standard Efficient
Motor Application	General Purpose
Drive End Bearing	6203
Duty Cycle	Continuous
Phase	Single Phase
Frame	56
Ambient Temperature	104 °F
RPM	1800 rpm
Frequency	60 Hz
Type	3424LC
Hz	60 Hz
Motor Shaft Size	5/8 in
Open End Bearing	6203
BALD Family Names	Premium Efficient, Single Phase Motor
Product Line	RG
Brake Feature	No
Insulation Class	F
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
Mount Type	F1
Mounting	Rigid Base
Voltage	115 V, 230 V
Shaft Rotation	Reversible
Full Load Efficiency	78.5 %
Service Factor	1.25
Overall Length	11.97 in
Full Load Current	4.6/2.3
Design	N
Washdown Duty	No
Mult. Sym.	K
Mounting Style	F-1
Weight	30.0 LB
EAN or UPC	781568138601
