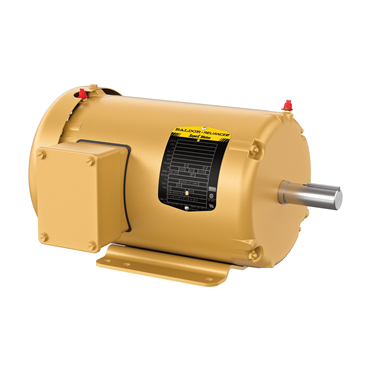

2 hp 145T Frame Three Phase AC Motor

EM3558T

2 hp 145T Frame Three Phase AC Motor
Item #101002723
  • TEFC Enclosure
  • 2 hp
  • 60 Hz Frequency
  • 145T Frame
2 hp 145T Frame Three Phase AC Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • NEMA PremiumNEMA Premium
  • TEFC Enclosure
  • 2 hp
  • 60 Hz Frequency
  • 145T Frame

applications

  • General-purpose applications
  • Pumps
  • Compressors
  • Fans
  • Conveyors
  • Machine tools
  • Blowers
  • Speed reducers

features

  • Locked DE bearing to allow mounting in any configuration
  • Copper windings
  • Low noise vibration dampening base
  • Robust heavy gage steel design
Duty Cycle Continuous
End Plate Standard
Service Factor 1.15
Enclosure TEFC
Mount Type F1
C Face Kit 35-8762
Design B
Shaft Diameter 0.88 in
Type 3532M
Open End Bearing 6203
Product Line RG
Motor Shaft Length 2 1/4 in
Power Factor 77
Full Load Current 5.6/2.8
Full Load Efficiency 86.5 %
Standard CSA EEV, NEMA_PREMIUM, UR, NEMA
Full Load Amps 2.7
Motor Shaft Size 7/8 in
NEMA Design B
C Dimension 14 1/4 in
Rotation R
Brake Feature No
Efficiency 86.5%
RefPicture EM3555T
Speed 1760 rpm
HP 2
Drive End Bearing 6205
Shaft Rotation Reversible
Full Load Pf 82
Voltage 575 V
Overall Length 13.28 in
Full Load rpm 1725 rpm
Motor Application General Purpose
Frame 145T
Enclosure Designation TEFC - Totally Enclosed Fan Cooled
Phase Three Phase
Synchronous 1800 rpm
Efficiency Group Premium Efficient
Poles 4
Multispeed Single Speed
Conduit Box Material Steel
Frequency 60 Hz
HP [Min] 2
Insulation Class F
Shaft Dia. 0.875 in
Voltage Rating 230/460
Shaft Grounding No
Epact Nominal Full Load Efficiency 84 %
Rated Efficiency 86.5 %
Base Rigid
Mounting Rigid Base
Mounting Style F-1
Mult. Sym. L1
VoltCode E
Useable at 208V Yes
Frame Size 145T
Inverter Duty Inverter Ready
Hz 60 Hz
RPM 1800
Frame Material Steel
Washdown Duty No
Ambient Temperature 104 °F
Weight 45.0 LB
EAN or UPC 781568138908
NSN Number 6105-01-370-2571
