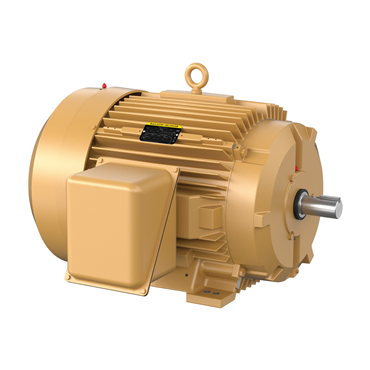

75 hp 365TS Frame Three Phase AC Motor

EM4316TS

75 hp 365TS Frame Three Phase AC Motor
Item #101411537
  • TEFC Enclosure
  • 75 hp
  • 60 Hz Frequency
  • 365TS Frame
75 hp 365TS Frame Three Phase AC Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • TEFC Enclosure
  • 75 hp
  • 60 Hz Frequency
  • 365TS Frame
Inverter Duty Inverter Ready
Voltage 230 V, 460 V
Power Factor 86
Duty Cycle Continuous
Enclosure TEFC
Synchronous 1800 rpm
Base Rigid
Ambient Temperature 104 °F
Shaft Diameter 1.88 in
Insulation Class F
HP 75
Efficiency 95.4%
Frame Material Iron
Phase Three Phase
Speed [Max] 2700
Multispeed Single Speed
Poles 4
Mount Type F1
End Plate Standard
Overall Length 31.36 in
Frequency 60 Hz
NEMA Design B
Shaft Rotation Reversible
Standard CCSAUSEEV, NEMA_PREMIUM, UR, NEMA
Frame Size 365TS
Shaft Dia. 1.875 in
Service Factor 1.15
Full Load Current 171/85.9
Shaft Grounding No
Type AC Motor
Rated Efficiency 95.4 %
Speed 1780 rpm
Weight 946.0 LB
EAN or UPC 781568615508
