EWDM3558T

2 hp 143T Frame Three Phase AC Motor

Item #101004177

Auto Replenish

each One-time purchase

Alternate Products

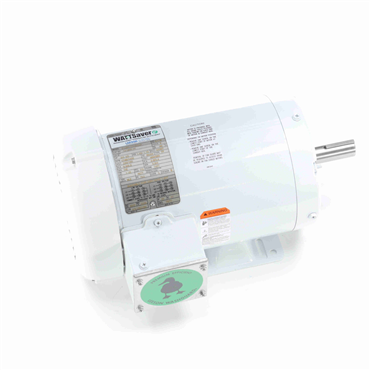

Leeson 121866.00

Washdown Duty AC Motor

Item #101393200

each

Compare

Product Details

Specifications

Shaft Grounding	No
Synchronous	1800 rpm
Rated Efficiency	86.5 %
Hz	60 Hz
C Dimension	14.18 in
Mult. Sym.	L1
Rotation	R
Service Factor	1.15
Inverter Duty	Inverter Ready
Efficiency Group	Premium Efficient
Efficiency	86.5%
Power Factor	77
Brake Feature	No
Drive End Bearing	6205
Mounting	Rigid Base
Insulation Class	F
Shaft Rotation	Reversible
Full Load Pf	82
HP	2
Motor Shaft Length	2 1/4 in
Voltage Rating	230/460
Mounting Style	F-1
Motor Application	Washdown Duty
Enclosure	TEFC
Open End Bearing	6203
VoltCode	E
Frame Material	Steel
Ambient Temperature	104 °F
Multispeed	Single Speed
Design	B
Voltage	230 V, 460 V
Motor Shaft Size	7/8 in
End Plate	Standard
Shaft Dia.	0.875 in
Phase	Three Phase
Full Load Current	5.6/2.8
Frequency	60 Hz
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
Frame	145T
NEMA Design	B
Full Load Amps	2.7
RefPicture	EWD
Standard	CSA EEV, NEMA_PREMIUM, UR, NEMA
Duty Cycle	Continuous
Base	Rigid
Product Line	RG
Mount Type	F1
Useable at 208V	Yes
Full Load rpm	1725 rpm
Frame Size	143T
RPM	1,800 rpm
Overall Length	13.29 in
Washdown Duty	Yes
Poles	4
Full Load Efficiency	86.5 %
Conduit Box Material	Steel
Type	3532M
Shaft Diameter	0.88 in
Speed	1760 rpm
Weight	46.0 LB
EAN or UPC	781568457542
