GLP3336

Subfractional HP Gear Motor

Item #100997394

115/ 208/ 230 Voltage

TEFC - Totally Enclosed Fan Cooled

172.5 rpm Output @ 60 Hz

109 lb/in Torque

+ Show More

Auto Replenish

each One-time purchase

Alternate Products

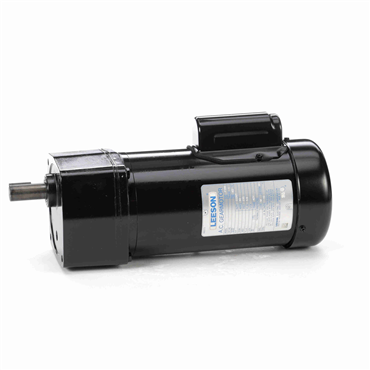

Leeson 096051.00

1/3 HP.1725 RPM.42Y.TEFC.115/230V AC.1 PH.60 HZ.CONT.40 C.SPECIAL.AC GEARMOTORS SUB-FHP.C42C17FZ6B.S

Item #101540989

each

Compare

Product Details

Conveyors, packaging machines, machine tools and laboratory equipment requiring constant speed

Suitable for horizontal or vertical mounting, reversible, continuous-duty, baked enamel finish

Specifications

Type	324PSL
Service Factor	1
Output RPM @ 60 Hz	172.5 rpm
Full Load rpm	172.5 rpm
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
C Dimension	12.87 in
Mounting Style	GM
Mult. Sym.	DS
Max. Safe Torque	109 lb/in
Full Load Amps	6.6/3.1-3.3
Voltage Rating	230, 115, 208
Mounting	N
RefPicture	GLP3328
Ratio	10:1
Hz	60 Hz
Gear Style	PSLH
Voltage Code	A
Output Configuration	Parallel Shaft Output
Phase	Single Phase
Design	N
Enclosure	TEFC
Frame	3324L
Weight	25.0 LB
EAN or UPC	781568140536
