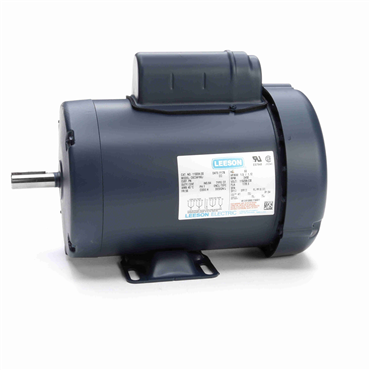

1 1/2 hp 56/56H Frame Single Phase AC Motor

L3513

1 1/2 hp 56/56H Frame Single Phase AC Motor
Item #101000182
  • TEFC Enclosure
  • 1 1/2 hp
  • 60 Hz Frequency
  • 56/56H Frame
1 1/2 hp 56/56H Frame Single Phase AC Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • TEFC Enclosure
  • 1 1/2 hp
  • 60 Hz Frequency
  • 56/56H Frame

applications

  • Pumps
  • Fans
  • Conveyors
  • Compressors
  • Machine tools
  • Speed reducers
  • Gear reducers

features

  • Locked DE bearing to allow mounting in any configuration
  • Low noise vibration dampening base
  • Dynamically balanced rotor to increase bearing life
  • Superior switch design provides optimized torque profiles
  • Robust heavy gauge steel design

caution

  • Motors misapplied in hazardous environments can cause a fire or explosion, resulting in destruction of property, serious injury or death
  • Only the end user or a qualified underwriter is to identify and select the proper class, group, division and temperature code motor to meet the requirements of each installation
  • Service center personnel can advise what listings and approvals motors carry, but cannot evaluate nor recommend what motors may be suitable for use in hazardous environments
Enclosure TEFC
Voltage 115 V, 230 V
Mounting Style F-1
Conduit Box Material Steel
Overall Length 12.91 in
End Plate Standard
Insulation Class B
Multispeed Single Speed
RPM 1800
Phase Single Phase
Type 3524L
Duty Cycle Continuous
Substitute Motor L3513A
Motor Shaft Size 5/8 in
Service Factor 1.15
RefPicture ELTE
Standard CSA, UR, NEMA
Voltage Rating 115/230
Enclosure Designation TEFC - Totally Enclosed Fan Cooled
HP 1 1/2
Poles 2
Frame Size 56/56H
Mult. Sym. K
Motor Shaft Length 1 7/8 in
Shaft Grounding No
Mount Type F1
Shaft Rotation Reversible
Power Factor 85
Base Rigid
Rotation R
Hz 60 Hz
Ambient Temperature 104 °F
Design L
Full Load Amps 8
VoltCode B1
Drive End Bearing 6205
Mounting Rigid Base
Shaft Dia. 0.625 in
Frequency 60 Hz
Synchronous 3600 rpm
Full Load Efficiency 70%
Epact Nominal Full Load Efficiency 82.5%
Full Load rpm 3450 rpm
Full Load Pf 85
NEMA Design L
Efficiency Group Standard Efficient
Frame 143T
Full Load Current 16/8
Useable at 208V Yes
Shaft Diameter 0.63 in
BALD Family Names Single Phase Motor
Motor Application General Purpose
Efficiency 70%
Product Line RG
HP [Min] 1
Washdown Duty No
Frame Material Steel
Brake Feature No
Rated Efficiency 70 %
Speed 3450 rpm
Open End Bearing 6203
Weight 41.0 LB
EAN or UPC 781568100486
