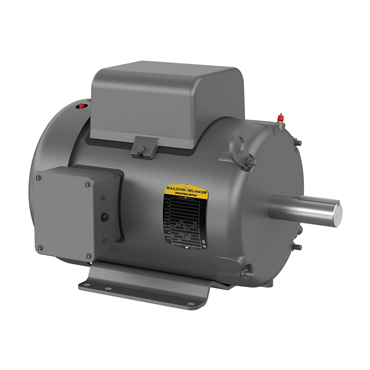

Single Phase TEFC Rigid Base General Purpose AC Motor

L3708

Single Phase TEFC Rigid Base General Purpose AC Motor
Item #101001657
  • 5 HP, 1800 RPM, 60 Hertz, 208-230 Volt, Single Phase, TEFC - Totally Enclosed Fan Cooled, Rigid Base, 215 Frame, 1.15 SF
Single Phase TEFC Rigid Base General Purpose AC Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 5 HP, 1800 RPM, 60 Hertz, 208-230 Volt, Single Phase, TEFC - Totally Enclosed Fan Cooled, Rigid Base, 215 Frame, 1.15 SF

applications

  • General purpose
  • Compressors
  • Pumps
  • Fans
  • Farm equipment
  • Conveyors
  • Material handling equipment
  • Machine tools

features

  • Heavy-gauge steel frames
  • Ball bearings
  • Base seam is welded to frame
  • Snap Action starting switch
  • Gasketed conduit box and capacitor cover
  • Usable at 208V

caution

  • Motors misapplied in hazardous environments can cause a fire or explosion, resulting in destruction of property, serious injury or death
  • Only the end user or a qualified underwriter is to identify and select the proper class, group, division and temperature code motor to meet the requirements of each installation
  • Service center personnel can advise what listings and approvals motors carry, but cannot evaluate nor recommend what motors may be suitable for use in hazardous environments
Full Load Amps 21
Open End Bearing 6206
Brake Feature No
Voltage 230
Design L
C Dimension 18.69 in
Epact Nominal Full Load Efficiency 87.5 %
Motor Shaft Length 3 in
Poles 4
Mounting Rigid Base
Motor Application General Purpose
Full Load Pf 92
Frame 215
Useable at 208V Yes
Rotation R
Mult. Sym. L1
Washdown Duty No
RefPicture ELTE
RPM 1800 rpm
Voltage Rating 230
Mounting Style F-1
BALD Family Names Single Phase Motor
Frame Material Steel
Hz 60 Hz
Motor Shaft Size 1 1/8 in
Type 3744LC
Enclosure TEFC
Service Factor 1.15
Enclosure Designation TEFC - Totally Enclosed Fan Cooled
Product Line RG
VoltCode D1
Drive End Bearing 6307
Substitute Motor FDL3731M
Phase Single Phase
Full Load Efficiency 83 %
Full Load rpm 1725 rpm
Frame Size Shaft Input, Not a C-Face
Efficiency Group Standard Efficient
HP 5
Weight 130.0 LB
EAN or UPC 781568100851
