VEJMM3710T

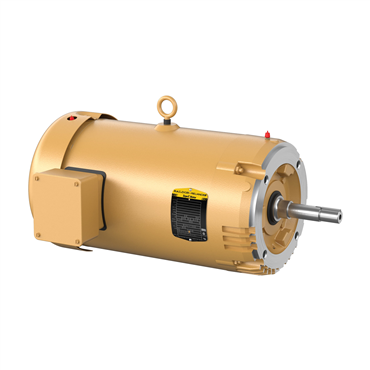

7 1/2 hp 213JM Frame Three Phase AC Motor

Item #101002354

Auto Replenish

each One-time purchase

Product Details

Energy saving close coupled pump applications where continuous- or frequent-duty is required
Suitable for use with inverter drives for variable torque and 20:1 constant torque

Specifications

Open End Bearing	6206
Motor Application	Pump Duty, Inverter Duty, Premium Efficient
Mult. Sym.	L1
Type	3735M
Insulation Class	F
Frame Size	213JM
Standard	CSA EEV, NEMA_PREMIUM, UR, NEMA
Inverter Duty	Inverter Ready
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
Efficiency Group	Premium Efficient
Frequency	60 Hz
Voltage	208 V, 230 V, 460 V
Hz	60 Hz
Enclosure	TEFC
Synchronous	1800 rpm
RefPicture	VEJMM
BALD Family Names	Premium Efficient, Pump Motor, Nema Premium™
Base	No Mounting
NEMA Design	A
Poles	4
Voltage Rating	460, 230
Brake Feature	No
Duty Cycle	Continuous
Overall Length	20.88 in
Speed	1770 rpm
Washdown Duty	No
Useable at 208V	No
Efficiency	91.7%
Shaft Dia.	0.875 in
Full Load rpm	1760 rpm
Service Factor	1.15
Power Factor	80
Phase	Three Phase
Drive End Bearing	6309
RPM	1800 rpm
Shaft Diameter	0.88 in
Multispeed	Single Speed
Frame Material	Steel
Mount Type	F1
Full Load Efficiency	91 %
Full Load Amps	9.8
Shaft Rotation	Reversible
HP	7 1/2
Design	B
Full Load Current	19/9.5
Conduit Box Material	Steel
Rotation	R
Ambient Temperature	104 °F
End Plate	C-Face
Shaft Grounding	No
Rated Efficiency	91.7 %
VoltCode	F
Product Line	N
Mounting Style	F-1
Mounting	C-Face - Less Base
Frame	213JM
Full Load Pf	80
Weight	136.0 LB
EAN or UPC	781568670781
