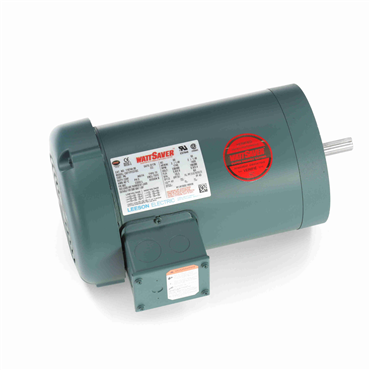

2 hp 56C Frame Three Phase AC Motor

VEM3558

2 hp 56C Frame Three Phase AC Motor
Item #101000562
  • TEFC Enclosure
  • 2 hp
  • 60 Hz Frequency
  • 56C Frame
2 hp 56C Frame Three Phase AC Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • NEMA PremiumNEMA Premium
  • TEFC Enclosure
  • 2 hp
  • 60 Hz Frequency
  • 56C Frame

features

  • Heavy-gauge steel frame
  • Locked DE bearing to allow mounting in any configuration
  • Insulated copper wire
  • Designed for longevity with a three-year warranty on premium efficient Super-E® motors
  • Low loss, electrical grade lamination steel
  • Energy Reduction: Uses less energy than competing products with same function and purpose
  • Meets Federal Energy Management Program (FEMP) energy efficiency levels
  • Motor meets NEMA Premium® efficiency standards for electric motors to conserve energy over extended time periods where continuous or frequent duty is required
  • Suitable for inverter use per NEMA MG1 part 31.4.4.2

caution

  • Motors misapplied in hazardous environments can cause a fire or explosion, resulting in destruction of property, serious injury or death
  • Only the end user or a qualified underwriter is to identify and select the proper class, group, division and temperature code motor to meet the requirements of each installation
  • Service center personnel can advise what listings and approvals motors carry, but cannot evaluate nor recommend what motors may be suitable for use in hazardous environments
Standard CSA EEV, NEMA_PREMIUM, UR, NEMA
Frame Size 56C
Brake Feature No
Full Load Pf 82
Service Factor 1.15
Rated Efficiency 86.5 %
Hz 60 Hz
Mult. Sym. K
Ambient Temperature 104 °F
Shaft Grounding No
Conduit Box Material Steel
Base No Mounting
Efficiency 86.5%
Inverter Duty Inverter Ready
Shaft Diameter 0.63 in
RPM 1,800 rpm
Full Load rpm 1725 rpm
Drive End Bearing 6205
Open End Bearing 6203
Enclosure TEFC
Shaft Dia. 0.625 in
Full Load Amps 2.7
Overall Length 13.23 in
NEMA Design B
Voltage Rating 230/460
Phase Three Phase
Mount Type F1
Motor Application Premium Efficient
Washdown Duty No
Efficiency Group Premium Efficient
Shaft Rotation Reversible
Motor Shaft Length 1 7/8 in
Frequency 60 Hz
Frame Material Steel
Motor Shaft Size 5/8 in
Insulation Class F
HP 2
VoltCode E
Product Line N
Full Load Current 5.6/2.8
Mounting Style F-1
Poles 4
Design B
Enclosure Designation TEFC - Totally Enclosed Fan Cooled
Frame 56C
Useable at 208V Yes
Voltage 230 V, 460 V
Full Load Efficiency 86.5 %
Duty Cycle Continuous
Synchronous 1800 rpm
Mounting C-Face - Less Base
End Plate C-Face
Multispeed Single Speed
RefPicture VEM3554
Type 3532M
Speed 1760 rpm
Rotation R
Power Factor 77
Weight 46.0 LB
EAN or UPC 781568308653
