VSSWDM3538

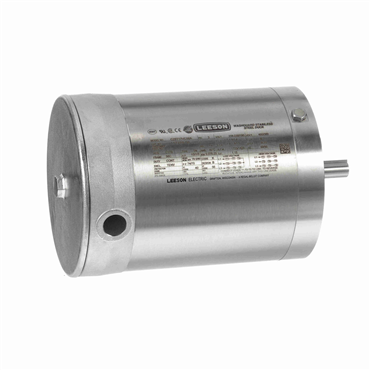

1/2 hp 56C Frame Three Phase AC Motor

Item #101004234

Auto Replenish

each One-time purchase

Product Details

All external surfaces are 300 series stainless steel
Moisture-resistant insulation system
Four condensation drains in each endplate
Endplate rabbets sealed and conduit box gasketed
Labyrinth seals
IP56 rating: Protected from limited dust ingress and from high pressure water jets from any direction

Specifications

Conduit Box Material	Steel
Voltage Rating	230/460
Duty Cycle	Continuous
Full Load Pf	76
Full Load Efficiency	75.5 %
End Plate	C-Face
Mount Type	F1
Rotation	R
Poles	4
Open End Bearing	6203
Power Factor	63
Efficiency	78.2%
Full Load rpm	1750 rpm
Brake Feature	No
Ambient Temperature	104 °F
Product Line	N
Service Factor	1.25
Rated Efficiency	81.5 %
Useable at 208V	Yes
Phase	Three Phase
RefPicture	VSSWDM
Washdown Duty	Yes
Inverter Duty	Inverter Duty
Shaft Diameter	0.63 in
VoltCode	E1
Enclosure	TENV
Design	B
Insulation Class	F
Mult. Sym.	K
Shaft Dia.	0.625 in
Overall Length	11.08 in
Synchronous	1800 rpm
Motor Shaft Size	5/8 in
Voltage	208 V, 230 V, 460 V
Drive End Bearing	6205
Mounting	C-Face - Less Base
Frame Material	Stainless Steel
Frame Size	56C
Mounting Style	F-1
Full Load Current	2.02/1.01
Motor Application	Washdown Duty
Frequency	60 Hz
HP	1/2
Base	No Mounting
NEMA Design	B
C Dimension	11.09 in
Enclosure Designation	TENV - Totally Enclosed Non-Ventilated
Shaft Grounding	No
Shaft Rotation	Reversible
Motor Shaft Length	1.88 in
Standard	CSA, UR, NEMA
Hz	60 Hz
Efficiency Group	Standard Efficient
Full Load Amps	0.8
Speed	1770 rpm
Multispeed	Single Speed
Type	3516M
RPM	1,800 rpm
Frame	56C
Weight	40.0 LB
EAN or UPC	781568555552
