PF-8-G

P-Series Female Rod End

Item #100740801

Auto Replenish

each One-time purchase

Alternate Products

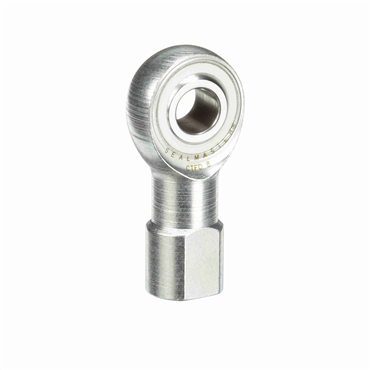

Sealmaster CTFD8

Commercial Right Hand Thread 3 pc Rod End DELRIN Race Female Rod End

Item #101182768

each

Compare

Spherco CTFD8

Carbon Steel Right-Handed 0.5 in ID Female Rod End

Item #101754284

each

Compare

Heim Bearings CFHD8

Carbon Steel Right-Handed 0.5 in ID Female Rod End

Item #102000456

each

Compare

Product Details

Specifications

Thread Type	UNF
Lubrication	Non-Relubricatable
Housing Width	1.312 in
Liner	N/A
Ball Material	Mild Steel Case Hardened Plated
Ball Flat Dia.	0.69 in
Lube Fitting	w/o Lube Fitting
Static Load Rating [Max]	6400 lbf
Thread Size	1/2
Thread Pitch	N/A
Length Through Bore	0.625 in
Misalignment Range	±10°
Bearing Type	Plain Bearing
Threads per Inch	20
Head Diameter	1/2 in
Bore Size	0.500 in - 1/2 in
Outer Race Material	NYLOY®
Ball Dia.	0.931 in
Right / Left Hand	Right Hand
Grade	Standard
Housing Material	Low Carbon Steel Plated for Corrosion Resistance
Weight	0.23 LB
