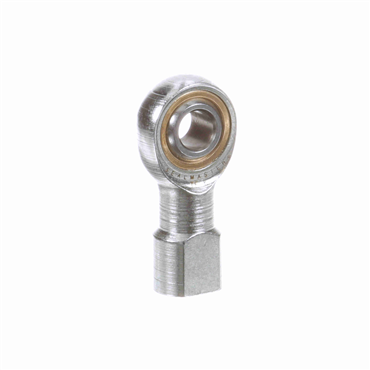

V-Series Female Rod End

VF-6-G

V-Series Female Rod End
Item #100000540
  • V-Series Female Rod End
  • 3/8" Bore
  • 3/8-24 Right Hand Thread
V-Series Female Rod End
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • V-Series Female Rod End
  • 3/8" Bore
  • 3/8-24 Right Hand Thread

description

  • V series rod ends combine a plated case hardened steel ball with self lubricated sintered phosphor bronze race secured permanently in a mild steel, plated housing. This combination ensure reduced frictional wear for longer life and superior resistance to corrosion. V series rod ends have been found to fulfill the widest range of applications and are an excellent general purpose rod end.
Lubrication Self-Lubricating
Static Load Rating [Max] 4300 lbf
Length Through Bore Tolerance +/- 0.005
Bore Size Tolerance +0.0025 / -0.0005
Lube Fitting None
Ball Material Steel-Case Hardened
Housing Width 1 in
Bearing Type Plain Bearing
Center Line to Base Dimension Tolerance +/- 0.030
Grade Maintenance Free
Head Diameter 0.406 in
Ball Flat Dia. 0.508 in
Threads per Inch 24
Alinabal Part No. 36000000|80002030
Length Through Bore 0.5 in
Across Wrench Flats 0.687 in
Housing Material Steel
Thread Type UNF
Race Material Sintered Bronze
Base Dia. 0.562 in
Bore Size 0.375 in - 3/8 in
Ball Dia. 0.713 in
Thread Length Tolerance +/- 0.060
Right / Left Hand Right Hand
Thread Size 3/8
Housing Width Tolerance +/- 0.010
Misalignment Range ±10°
Weight 0.12 LB
