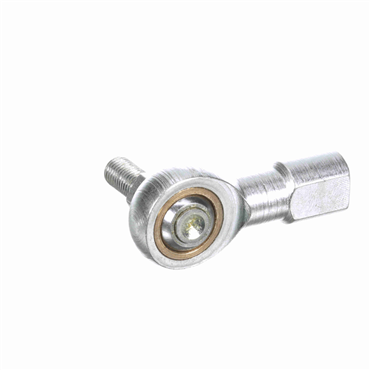

V-Series Female Rod End

Item #100000533
    Shipment Options

Alternate Products

Product details

  • V-Series Female Rod End
  • 1/4-28 Right Hand Female Thread to Right Hand Male Thread
  • Steel-One Piece Stud


  • V series rod ends combine a plated case hardened steel ball with self lubricated sintered phosphor bronze race secured permanently in a mild steel, plated housing. This combination ensure reduced frictional wear for longer life and superior resistance to corrosion. V series rod ends have been found to fulfill the widest range of applications and are an excellent general purpose rod end.


Thread Size 1/4
Right / Left Hand Right Hand
Grade Maintenance Free
Lubrication Self-Lubricating
Lube Fitting None
Race Material Sintered Bronze
Misalignment Range ±25°
Stud Type Integral Ball Stud
Static Load Rating [MAX] 550 lbf
Housing Material Steel
Ball Stud Material Steel-One Piece Stud
Threads per Inch 28
Thread Type UNF
Thread Length 3/4 in
Stud Length to Nut 0.562 in
Stud Length End to Center 1.047 in
Ball Flat Dia. 0.346 in
Head Diameter 3/8 in
Housing Width 3/4 in
Alinabal Part # 36084000
Across Wrench Flats 0.468 in
Center Line to Base Dimension Tolerance +/- 0.030
Ball Dia. 0.51 in
Housing Width Tolerance +/- 0.010
Center Line to Base Dimension 1.312 in
Thread Length Tolerance +/- 0.060
Stud Thread Length [MIN] 0.412 in
Base Dia. 3/8 in
Weight 0.07 LB
