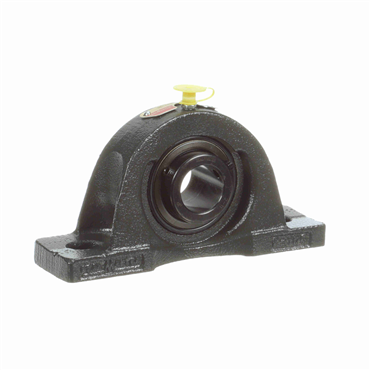

Narrow Inner Ring Cast Iron Housing Material Pillow Block

BLLP6-17

Narrow Inner Ring Cast Iron Housing Material Pillow Block
Item #101399540
  • 1 1/16 in Shaft Diameter
  • 1 11/16 in Center Line To Base Dimension
  • 4 13/32 in Bolt Hole Spacing Range [MIN]
Narrow Inner Ring Cast Iron Housing Material Pillow Block
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 1 1/16 in Shaft Diameter
  • 1 11/16 in Center Line To Base Dimension
  • 4 13/32 in Bolt Hole Spacing Range [MIN]
Base Height 19/32 in
Bolt Size 1/2 in
Locking Style Set Screw
Bolt Hole Length 13/16 in
Seal Type Contact Seals
Shaft Dia. 1.0625 in
Housing No. LLP6
Duty Series Normal
Bearing Type Ball Bearing
Insert Material AISI 52100 Steel
Mounted Unit Duty Normal-Duty
Housing LLP6
Bolt Hole Spacing Range [Min] 4 13/32 in
Base Width 1 3/16 in
Inch/Metric Inch Bore
Series BLLP
Bolt Hole Spacing 4 23/32 in
End Type Open End
Relubricatable No
Housing Construction 1 Piece
Locking Device Setscrew Locking Collar
Housing Material Cast Iron
Lubrication Non-Relubricatable
Housing Height 3 1/4 in
Pillow Block Type Thru-Bolt
Base Length 6 1/8 in
Length Through Bore 1.193 in
Bolt Hole Spacing Range [Max] 5 1/32 in
Bolt Holes 2
Bearing Design Non-Expansion
Bolt Hole Width 9/16 in
Weight 3.42 LB
EAN or UPC 808250107117
