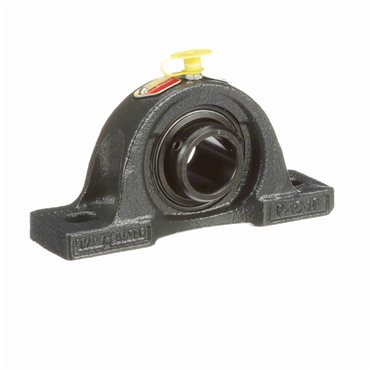

Wide Inner Ring Cast Iron Housing Material Pillow Block

UCLP206-18

Wide Inner Ring Cast Iron Housing Material Pillow Block
Item #101497480
  • 1 1/8 in Shaft Diameter
  • 1 9/16 in Center Line To Base Dimension
  • 4 1/2 in Bolt Hole Spacing Range [MIN]
Wide Inner Ring Cast Iron Housing Material Pillow Block
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 1 1/8 in Shaft Diameter
  • 1 9/16 in Center Line To Base Dimension
  • 4 1/2 in Bolt Hole Spacing Range [MIN]
Locking Device Setscrew Locking Collar
Bolt Holes 2
Housing No. LP206
Base Width 1 5/8 in
Seal Type Contact Seals
Locking Style Set Screw
Pillow Block Type Thru-Bolt
Bolt Hole Spacing 4 7/8 in
End Type Open End
Insert Material AISI 52100 Steel
Bolt Hole Length 7/8 in
Housing Height 3 3/16 in
Duty Series Normal
Inch/Metric Inch Bore
Bolt Size 1/2 in
Bolt Hole Spacing Range [Max] 5 1/4 in
Length Through Bore 1.500 in
Mounted Unit Duty Normal-Duty
Housing Material Cast Iron
Bearing Insert UC206-18
Bearing Design Non-Expansion
Lubrication Relubricatable
Base Length 6 1/2 in
Bearing Type Ball Bearing
Housing Construction 1 Piece
Series UCLP200
Lubrication Fitting Tap 1/8-27 NPT
Housing LP206T
Bolt Hole Spacing Range [Min] 4 1/2 in
Relubricatable Yes
Base Height 11/16 in
Shaft Dia. 1.125 in
Bolt Hole Width 19/32 in
Weight 2.94 LB
EAN or UPC 808250109074
