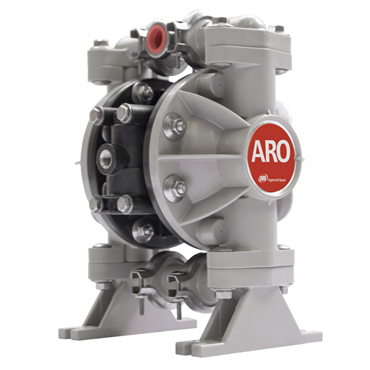

1/2" Port Non-Metallic Diaphragm Pump

666053-0D2

1/2" Port Non-Metallic Diaphragm Pump
Item #101762894
  • 1/2" NPT Fluid Inlet
  • 1/2" NPT Fluid Outlet
  • 1/4" NPT Air Inlet
  • 10 gpm Max. Flow
  • Nitrile Ball Material
  • Duckbill Seat Material
+ Show More + Show Less
1/2" Port Non-Metallic Diaphragm Pump
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 1/2" NPT Fluid Inlet
  • 1/2" NPT Fluid Outlet
  • 1/4" NPT Air Inlet
  • 10 gpm Max. Flow
  • Nitrile Ball Material

features

  • Lightweight, compact size
  • Leak-free bolted construction
  • Stall-free air valve operation
  • Good material compatibility with corrosive fluids and harsh environments
  • Portable and easy to apply
  • Excellent for nonaggressive, general-purpose fluids
  • Five-year manufacturer warranty
Air Motor Type Standard
Inlet Pressure [Max] 100 psi
Diaphragm Material Nitrile
Length 8 3/8 in
Displacement (gal/cycle) 8.8
Operation Temperature [Min] 35 °F
Inlet/Outlet Type Single Inlet, Single Outlet
Wetted Material Polypropylene
Air Consumption [Max] 1.0 ft3/min
Operation Temperature [Max] 150 °F
Height 11 1/4 in
Pump Type 1/2 in Non-Metallic
Body Material Polypropylene
Flow [Max] 10.00 gal/min
Hardware Material Stainless Steel
Ratio 1:1
Maximum Pumpable Solids Size 3/32 in
Width 6 7/16 in
Ball/Check Material Nitrile
Manifold Type Multi-Port Manifold
Manifold Material Polypropylene
Air Inlet 1/4
Fluid Outlet 1/2 in NPT
Seat Material Duckbill
Fluid Inlet 1/2 in NPT
Air Inlet Type NPT
Weight 10.0 LB
EAN or UPC 663023103730
