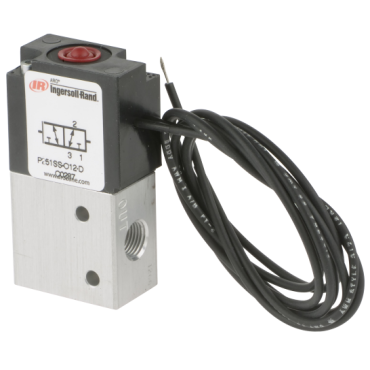

- Premair™ Series Valve
- Standard Duty
- Electric
- 3-Way
- 2 Position
description
- ARO's Premair™ series valves are direct acting and ideally suited to control double acting cylinders. These valves are compact to save space, while providing exceptional airflow and fast response time. They can be used as a diverter or selector valve.
features
- Quick response
- Nonlocking manual override
- Continuous-duty coil
| Length | 1.320 in |
| Return Type | Spring |
| Port Size | 1/8 in |
| Flow (SCFM) | 10 SCFM |
| Temperature Range [Max] | 125 °F |
| Actuator Type | Solenoid |
| Voltage Rating | 12 VDC |
| Installed Options | None |
| Spool Description | N/A |
| Temperature Range [Min] | 32 °F |
| Valve Duty | Standard Duty |
| Cv Flow | 0.144 |
| Overrides | Non-Locking Manual Override |
| Series | Premair™ Series |
| Pilot Exhaust | None |
| Coil Style | Lead Wires |
| Operating Pressure Range | 0 psi to 125 psi |
| Height | 2.400 in |
| Wiring Options | None |
| Port Type | NPT |
| Valve Body Style | Body Ported |
| Valve Type | 3-Way, 2 Position |
| Pilot Source | None |
| Operation | Electric |
| Spool Seal Type | Buna-N |
| Stations | N/A |
| Solenoid | Single |
| Weight | 0.05 LB |
