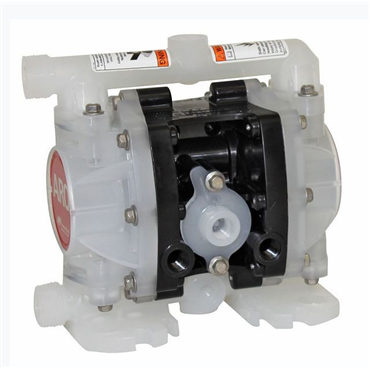

1/4" Non-Metallic Compact Diaphragm Pump

PD01P-HPS-PTT-A

1/4" Non-Metallic Compact Diaphragm Pump
Item #110654748
  • 1/4" PTF Air Inlet
  • 1/4" NPTF/BSPT Fluid Inlet
  • 5.3 gpm Max. Flow
  • Santoprene Ball Material
  • Polypropylene Seat Material
  • Santoprene Diaphragm Material
+ Show More + Show Less
1/4" Non-Metallic Compact Diaphragm Pump
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 1/4" PTF Air Inlet
  • 1/4" NPTF/BSPT Fluid Inlet
  • 5.3 gpm Max. Flow
  • Santoprene Ball Material
  • Polypropylene Seat Material

description

  • Part of their Compact Series of pumps, ARO's 1/4" pumps feature big performance in a compact package. They feature flow rates up to 5.3 gpm (20 lpm), a wide range of material options, multi-port versions and the unique hybrid male/female threaded fluid connections.
Flow [Max] 5.30 gal/min
Diaphragm Material PTFE
Wetted Material Polypropylene
Air Inlet 1/4
Maximum Pumpable Solids Size 1/16 in
Fluid Inlet 1/4 in NPTF/BSPT Internal
Body Material Polypropylene
Air Inlet Type PTF
Pump Type 1/4 in Nonmetallic
Inlet Pressure [Max] 125 psi
Ball/Check Material PTFE
Displacement (gal/cycle) 0.019
Ratio 1:1
Hardware Material Stainless Steel
Fluid Outlet 3/4 in NPTF/BSPT External
Seat Material Polypropylene
Weight 3.0 LB
EAN or UPC 663023116082
