CM-7Z

CM Series General Purpose Economy Male Rod End

Item #100740932

Auto Replenish

each One-time purchase

Alternate Products

Spherco CFM7N

COMMERCIAL ROD END 2PC MALE ZERK

Item #105081636

each

Compare

Heim Bearings M7CRG

Carbon Steel 0.438 in ID Right-Handed Male Rod End

Item #101992932

each

Compare

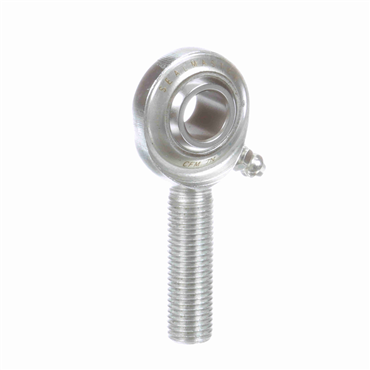

Sealmaster CFM7N

CFM-N Series Two-Piece Commercial Male Rod End

Item #101182679

each

Compare

Alinabal AM-7-GP8

A-Series Male Rod End

Item #100740792

each

Compare

Product Details

Specifications

Thread Pitch	N/A
Thread Size	7/16
Outer Race Material	N/A
Ball Dia.	13/16 in
Duty	General Purpose
Lube Fitting	w/ Lube Fitting
Misalignment Range	21°
Length Through Bore	0.5625 in
Housing Width	0.406 in
Housing Material	Carbon Steel, Protective Coated for Corrosion Resistance
Bore Size	0.438 in - 7/16 in
Threads per Inch	20
Thread Type	UNF
Thread Designation	7/16 - 20 UNF
Static Load Rating [Max]	6345 lbf
Head Diameter	1 1/8 in
Right / Left Hand	Right Hand
Lubrication	Relubricatable
Grade	Economy
Bearing Type	Plain Bearing
Ball Material	Sintered Steel, Heat Treated, Oil Impregnated
Weight	0.15 LB
EAN or UPC	190029021404
