Aurora Bearing Co.CW-10

CW-10

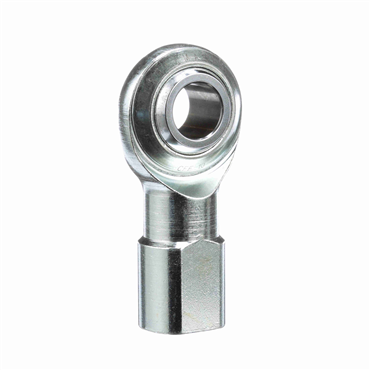

CW Series General Purpose Economy Female Rod End
Item #100740972
  • Female Rod End
  • 0.625 in Bore
  • Right Hand
  • 5/8-18 UNF-2B
  • 3.25 in Long
Aurora Bearing Co.CW-10
    Shipment Options
  • Female Rod End
  • 0.625 in Bore
  • Right Hand
  • 5/8-18 UNF-2B
  • 3.25 in Long

description

  • Aurora bearings feature all steel races, with full swage construction around precision ground steel balls.

features

  • Increased resistance to shock loads
Right / Left Hand Right Hand
Thread Size 5/8-18, 5/8
Ball Dia. 1 1/8 in
Bearing Type Plain Bearing
Type Rod End
Lubrication None
Thread Length [Min] 1 3/8 in
Lube Fitting w/o Lube Fitting
Thread Type UNF, UNF-2B
Misalignment 26 degrees
Static Load Rating [Max] 9713 lbf
Misalignment Range 26°
Housing Width 0.484 in
Inch/Metric Inch
Threads per Inch 18
Base Dia. 1 in
Grade Commercial
Housing Material Low Carbon Steel
Thread Pitch N/A
Across Wrench Flats 7/8 in
Total Height 3.25 in
Length Through Bore 0.75 in
Ball Material Alloy Steel
Head Diameter 1 1/2 in
Thread Hand Right Hand
External Thread Length 1.375 in
Bore Size 0.625 in - 5/8 in
Weight 0.43 LB
EAN or UPC 190029022609
