MG-16

MG Series General Purpose Female Rod End

Item #100992984

Auto Replenish

each One-time purchase

Alternate Products

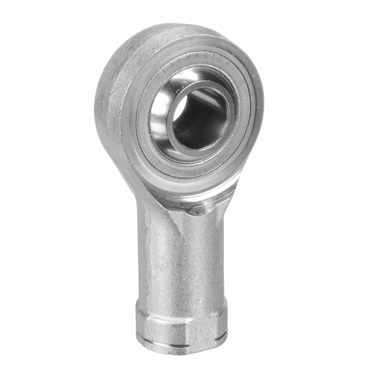

Sealmaster TRL16

Precision Left Hand Thread 3 pc Greasable Carbon Steel Race Female Rod End

Item #101183048

each

Compare

Spherco TRL16

Carbon Steel Left-Handed 1 in ID Female Rod End

Item #101755846

each

Compare

Heim Bearings HFL16

Carbon Steel Left-Handed 1 in ID Female Rod End

Item #101991696

each

Compare

Product Details

Specifications

Ball Dia.	1 7/8 in
Thread Size	1 1/4-12, 1 1/4
External Thread Length	2.125 in
Lube Fitting	w/o Lube Fitting
Head Diameter	2 3/4 in
Outer Race Material	Carbon Steel, Protective Coated for Corrosion Resistance
Base Dia.	1 5/8 in
Thread Pitch	N/A
Grade	Precision
Right / Left Hand	Left Hand
Bearing Type	Plain Bearing
Total Height	5.5 in
Across Wrench Flats	1 1/2 in
Lubrication	None
Thread Length [Min]	2 1/8 in
Housing Material	Low Carbon Steel
Inch/Metric	Inch
Bore Size	1.000 in - 1 in
Thread Hand	Left Hand
Static Load Rating [Max]	40889 lbf
Misalignment Range	17°
Thread Type	UNEF, UNF-2B-LH
Misalignment	17 degrees
Length Through Bore	1.375 in
Threads per Inch	12
Housing Width	1 in
Type	Rod End
Ball Material	Alloy Steel
Body Material	Alloy steel, protective coated for corrosion resistance.
Weight	2.125 LB
EAN or UPC	190029035234
