EP081008

Bronze Sleeve (Plain) Bearings SAE 841

Item #101823953
each
    Shipment Options
  • Eco-FriendlyEco-Friendly

Alternate Products

Product details

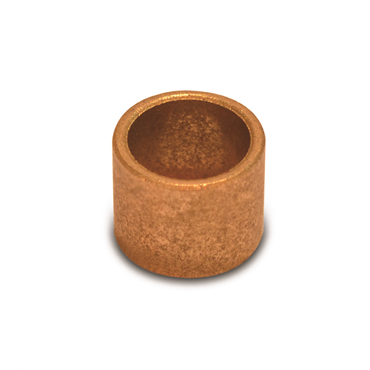

  • Straight Bushing
  • 1/2" ID x 5/8" OD x 1/2" Long
  • Bronze - Oil Impregnated (SAE 841)

description

  • Bunting Oil-Filled P/M Bronze Bearings Stock Bearings Bunting Bearings offers a complete line of stock plain bearings, flange bearings and washers made of P/M bronze. Bunting sintered bronze stock bearings have long conformed to ASTM chemical and physical properties, and are the first to include all ASTM standard sizes to ASTM recommended dimensions and tolerances. After forming, sintering and sizing, the bearings are vacuum impregnated with SAE 30 oil that provides lubricant which is metered from the bearing to the shaft during rotation. Standard off-the-shelf oil impregnated bronze bearings should function satisfactorily in temperatures ranging from 10 °F to 220 °F. Consult Bunting if application requires higher temperatures or other specific operating conditions.

Specifications

Bore Type Round Bore
Temperature Range [Max] 220 °F
Actual I.D. [Min] 0.5010 in
I.D. 1/2 in
Length 1/2 in
Actual O.D. [Min] 0.6270 in
Temperature Range [Min] 10 °F
Actual I.D. [Max] 0.5020 in
Actual O.D. [Max] 0.6280 in
Inch/Metric Inch
Has Flange No
Groove Type No Groove
Length Tolerance +/- 0.005 in
O.D. 0.625 in
Material Bronze – Oil Impregnated (SAE 841)
Weight 0.013 LB
EAN or UPC 717905074561

Compliance & Restrictions

  • Eco-FriendlyEco-Friendly
